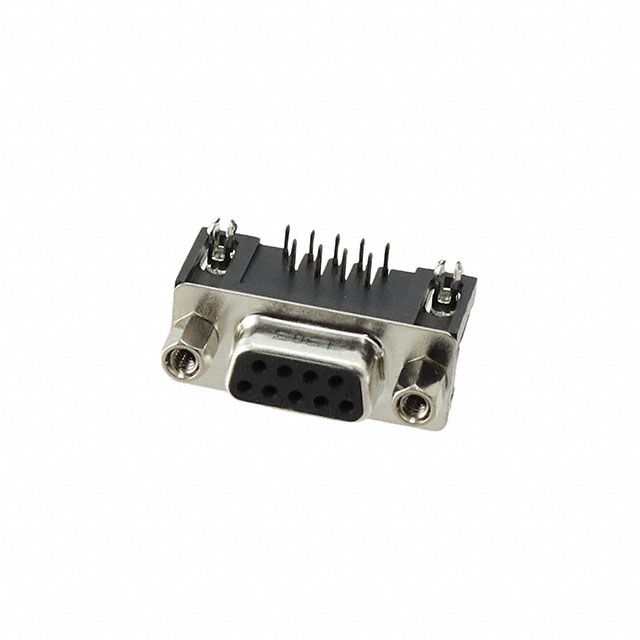

L77SDE09SA4CH4FC309
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
L77SDE09SA4CH4FC309
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L77SDE09SA4CH4FC309 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L77SDE09 Series
| Part | Contact Type | Connector Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Connector Style | Contact Form | Material Flammability Rating | Number of Rows | Current Rating (Amps) | Voltage Rating | Backset Spacing | Backset Spacing | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Material | Flange Feature | Mounting Type | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish Thickness | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | 8.08 mm | 0.318 " | DE E | 1 | Phosphor Bronze | Female Screwlock (4-40) Mating Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | ||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | 14.99 mm | 0.59 " | DE E | 1 | Phosphor Bronze | 4-40 Board Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | ||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | 8.08 mm | 0.318 " | DE E | 1 | Phosphor Bronze | Female Screwlock (4-40) Mating Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | ||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | DE E | 1 | Phosphor Bronze | Housing/Shell (Unthreaded) | Through Hole | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | ||||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | 8.08 mm | 0.318 " | DE E | 1 | Phosphor Bronze | Female Screwlock (4-40) Mating Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | Flash | |||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | 8.08 mm | 0.318 " | DE E | 1 | Phosphor Bronze | 4-40 Board Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | Flash | |||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | 10.3 mm | 0.406 in | DE E | 1 | Phosphor Bronze | 4-40 Board Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | ||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | 0.76 Ám | 30 Áin | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | DE E | 1 | Phosphor Bronze | 4-40 Board Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | ||||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | Solder | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | 10.3 mm | 0.406 in | DE E | 1 | Phosphor Bronze | 4-40 Board Side | Through Hole Right Angle | Thermoplastic Glass Filled | -55 °C | 125 °C | Black | Flash | |||
Amphenol ICC (Commercial Products) | Signal | Receptacle Female Sockets | 0.76 Ám | 30 Áin | Gold | 9 | D-Sub | Stamped | UL94 V-0 | 2 | 3 A | 250 VDC | DE E | 1 | Brass | Female Screwlock (4-40) Mating Side | Free Hanging (In-Line) | Thermoplastic Glass Filled | -55 °C | 105 ░C | Black | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.36 | |
| 10 | $ 2.56 | |||
| 25 | $ 2.31 | |||
| 40 | $ 2.19 | |||
| 80 | $ 2.03 | |||
| 230 | $ 1.81 | |||
| 440 | $ 1.69 | |||
| 945 | $ 1.56 | |||
| 2400 | $ 1.43 | |||
Description
General part information
L77SDE09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
