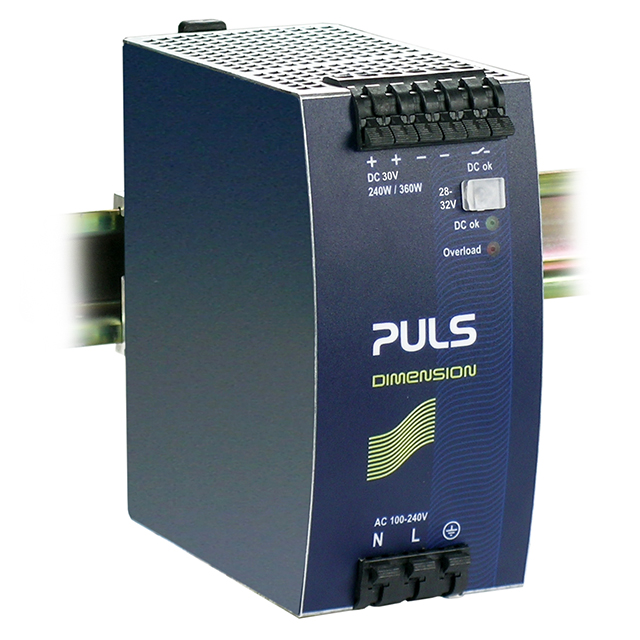

QS10.301

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 30V 240W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QS10.301

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 30V 240W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QS10.301	QS10 Series

AC Voltage - Input [Max]	276 VAC	240 - 276 VAC
AC Voltage - Input [Min]	85 VAC	85 - 100 VAC
Applications	ITE (Commercial)	ITE (Commercial), Hazardous Locations
Approval Agency	CSA, EAC, ABS, DNV GL, IEC, UL	IEC, EAC, UL, CSA, ABS, DNV GL, SEMI, ATEX, IECEx
Current - Output (Max) [Max]	8 A	5 - 15 A
Efficiency	93.5 %	91.8 - 93.5 %
Features	PFC, Adjustable Output, Load Sharing	PFC, Conformal Coating, Adjustable Output, Load Sharing
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-25 - 0 °C
Power (Watts)	240 W	180 - 240 W
Size / Dimension [x]	4.61 "	4.61 "
Size / Dimension [x]	117 mm	117 mm
Size / Dimension [y]	2.36 "	2.36 "
Size / Dimension [y]	60 mm	60 mm
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	61010-2-201, 60950-1, 508, Class I Div 2	61010-2-201, 60950-1, 508, Class I Div 2, F47
Voltage - Isolation	500 V	500 V
Voltage - Output 1	30 V	12 - 48 V

QS10 Series

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Applications	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Current - Output (Max) [Max]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Approval Agency	Standard Number
PULS, LP QS10.241-C1	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Conformal Coating, Load Sharing, PFC	10 A	AC	-25 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %
PULS, LP QS10.481-D1	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	5 A	AC	-10 °C	70 °C	48 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	92 %	EAC, IEC, UL	508, 60950-1, 61010-2-201
PULS, LP QS10.301	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	8 A	AC	-10 °C	70 °C	30 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	ABS, CSA, DNV GL, EAC, IEC, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.241	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	10 A	AC	0 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	508, 60950-1, 61010-2-201, Class I Div 2, F47
PULS, LP QS10.481-A1	Hazardous Locations, ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	5 A	AC	-10 °C	70 °C	48 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	92 %	ATEX, CSA, IEC, IECEx, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.121-A1	Hazardous Locations, ITE (Commercial)	240 VAC	100 VAC	Adjustable Output, Load Sharing, PFC	15 A	AC	-25 °C	70 °C	12 V	1	500 V	180 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	91.8 %	ATEX, CSA, EAC, IEC, IECEx, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.241-A1	Hazardous Locations, ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	10 A	AC	-25 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL	508, 60950-1, 61010-2-201, Class I Div 2, F47
PULS, LP QS10.121	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	15 A	AC	0 °C	70 °C	12 V	1	500 V	180 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	91.8 %	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	508, 60950-1, 61010-2-201, Class I Div 2, F47
PULS, LP QS10.481	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	5 A	AC	0 °C	70 °C	48 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	92 %	ABS, CSA, DNV GL, EAC, IEC, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.241-D1	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	10 A	AC	-25 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	EAC, IEC, UL	508, 60950-1, 61010-2-201

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 535.50

Description

General part information

QS10 Series

AC/DC DIN RAIL SUPPLY 30V 240W
