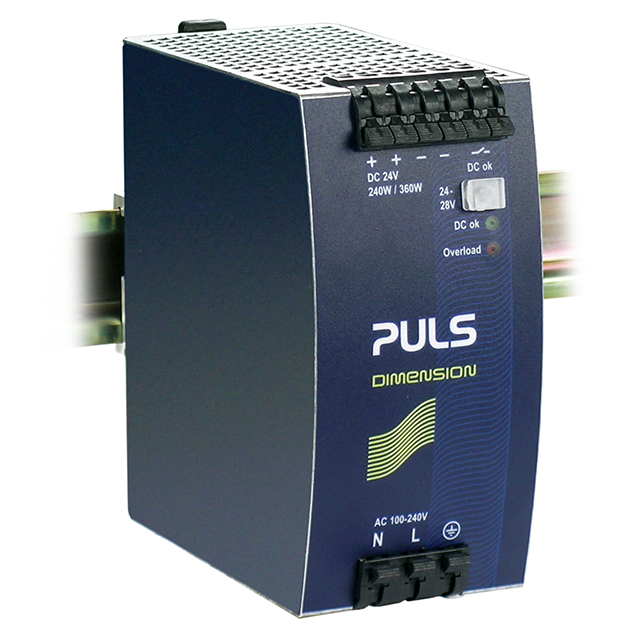

QS10.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QS10.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 445.50

Description

General part information

QS10 Series

AC/DC DIN RAIL SUPPLY 24V 240W

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QS10.241	QS10 Series

AC Voltage - Input [Max]	276 VAC	240 - 276 VAC
AC Voltage - Input [Min]	85 VAC	85 - 100 VAC
Applications	ITE (Commercial)	ITE (Commercial), Hazardous Locations
Approval Agency	SEMI, DNV GL, CSA, EAC, UL, ABS, IEC	IEC, EAC, UL, CSA, ABS, DNV GL, SEMI, ATEX, IECEx
Current - Output (Max) [Max]	10 A	5 - 15 A
Efficiency	93.5 %	91.8 - 93.5 %
Features	PFC, Adjustable Output, Load Sharing	PFC, Conformal Coating, Adjustable Output, Load Sharing
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	-25 - 0 °C
Power (Watts)	240 W	180 - 240 W
Size / Dimension [x]	4.61 "	4.61 "
Size / Dimension [x]	117 mm	117 mm
Size / Dimension [y]	2.36 "	2.36 "
Size / Dimension [y]	60 mm	60 mm
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	61010-2-201, Class I Div 2, 508, F47, 60950-1	61010-2-201, 60950-1, 508, Class I Div 2, F47
Voltage - Isolation	500 V	500 V
Voltage - Output 1	24 V	12 - 48 V

QS10 Series

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Applications	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Current - Output (Max) [Max]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Approval Agency	Standard Number
PULS, LP QS10.241-C1	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Conformal Coating, Load Sharing, PFC	10 A	AC	-25 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %
PULS, LP QS10.481-D1	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	5 A	AC	-10 °C	70 °C	48 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	92 %	EAC, IEC, UL	508, 60950-1, 61010-2-201
PULS, LP QS10.301	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	8 A	AC	-10 °C	70 °C	30 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	ABS, CSA, DNV GL, EAC, IEC, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.241	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	10 A	AC	0 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	508, 60950-1, 61010-2-201, Class I Div 2, F47
PULS, LP QS10.481-A1	Hazardous Locations, ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	5 A	AC	-10 °C	70 °C	48 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	92 %	ATEX, CSA, IEC, IECEx, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.121-A1	Hazardous Locations, ITE (Commercial)	240 VAC	100 VAC	Adjustable Output, Load Sharing, PFC	15 A	AC	-25 °C	70 °C	12 V	1	500 V	180 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	91.8 %	ATEX, CSA, EAC, IEC, IECEx, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.241-A1	Hazardous Locations, ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	10 A	AC	-25 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL	508, 60950-1, 61010-2-201, Class I Div 2, F47
PULS, LP QS10.121	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	15 A	AC	0 °C	70 °C	12 V	1	500 V	180 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	91.8 %	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	508, 60950-1, 61010-2-201, Class I Div 2, F47
PULS, LP QS10.481	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	5 A	AC	0 °C	70 °C	48 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	92 %	ABS, CSA, DNV GL, EAC, IEC, UL	508, 60950-1, 61010-2-201, Class I Div 2
PULS, LP QS10.241-D1	ITE (Commercial)	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	10 A	AC	-25 °C	70 °C	24 V	1	500 V	240 W	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	93.5 %	EAC, IEC, UL	508, 60950-1, 61010-2-201
