UB15SKW035C-JC

Active

NKK Switches

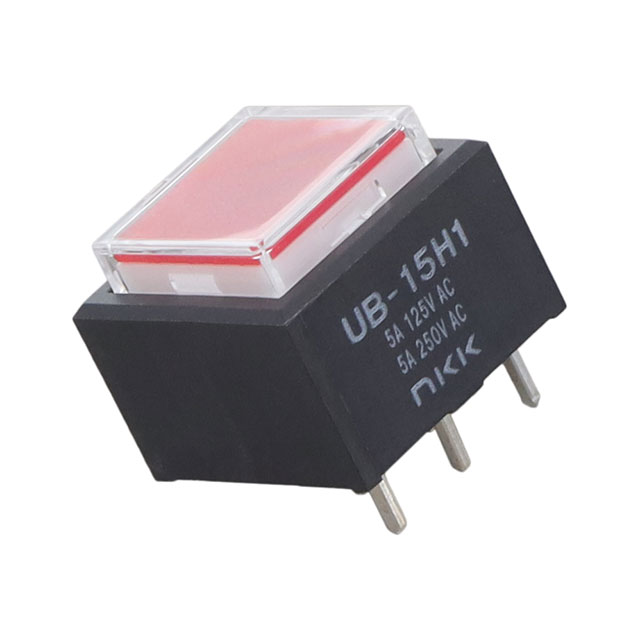

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB15SKW035C-JC

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB15SKW035C-JC

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Process Sealed
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.85 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB15SKW Series

Part	Current Rating (Amps)	Actuator Marking	Switch Function	Type	Mounting Type	Features	Mechanical Life	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Circuit	Electrical Life	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
NKK Switches UB15SKW035F-FF	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Green LED	2.1 VDC	SPDT	10000 Cycles	125 V	Green	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035D-DJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Amber LED	2 VDC	SPDT	10000 Cycles	125 V	Amber	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035C-JC	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	LED Red	1.85 VDC	SPDT	10000 Cycles	125 V	Clear (Red Filter/Diffuser)	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW03N-A	5 A	No Marking	On-Mom	Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin			SPDT	10000 Cycles	125 V	Black	Button Square	70 °C	-20 C	30 V
NKK Switches UB15SKW036B-JJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	LED White	2.9 VDC	SPDT	10000 Cycles	125 V	Clear	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035D	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Amber LED	2 VDC	SPDT	10000 Cycles	125 V		Plunger for Cap	50 °C	-25 °C	30 V
NKK Switches UB15SKW035F-FJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Green LED	2.1 VDC	SPDT	10000 Cycles	125 V	Green	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW03N-C	5 A	No Marking	On-Mom	Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin			SPDT	10000 Cycles	125 V	Red	Button Square	70 °C	-20 C	30 V
NKK Switches UB15SKW036G-JB	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Blue LED	2.9 VDC	SPDT	10000 Cycles	125 V	Clear	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW036G	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Blue LED	2.9 VDC	SPDT	10000 Cycles	125 V		Plunger for Cap	50 °C	-25 °C	30 V
