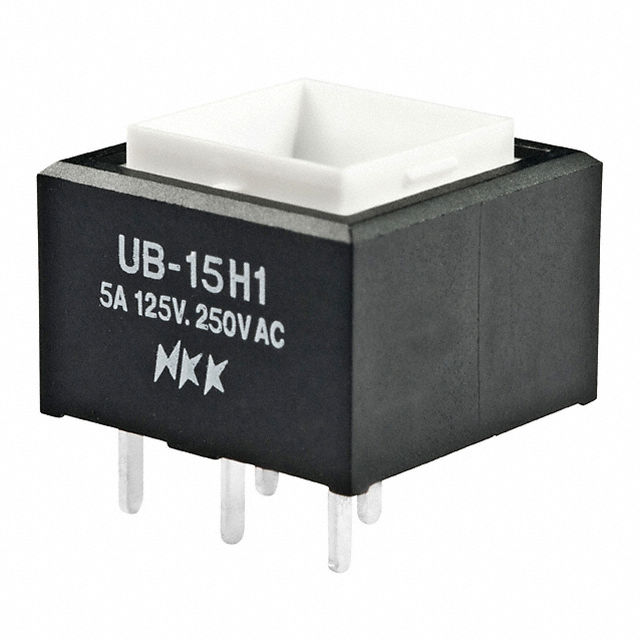

UB15SKW035D

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UB15SKW035D

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB15SKW035D

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Process Sealed
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB15SKW Series

Part	Current Rating (Amps)	Actuator Marking	Switch Function	Type	Mounting Type	Features	Mechanical Life	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Circuit	Electrical Life	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
NKK Switches UB15SKW035F-FF	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Green LED	2.1 VDC	SPDT	10000 Cycles	125 V	Green	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035D-DJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Amber LED	2 VDC	SPDT	10000 Cycles	125 V	Amber	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035C-JC	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	LED Red	1.85 VDC	SPDT	10000 Cycles	125 V	Clear (Red Filter/Diffuser)	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW03N-A	5 A	No Marking	On-Mom	Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin			SPDT	10000 Cycles	125 V	Black	Button Square	70 °C	-20 C	30 V
NKK Switches UB15SKW036B-JJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	LED White	2.9 VDC	SPDT	10000 Cycles	125 V	Clear	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035D	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Amber LED	2 VDC	SPDT	10000 Cycles	125 V		Plunger for Cap	50 °C	-25 °C	30 V
NKK Switches UB15SKW035F-FJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Green LED	2.1 VDC	SPDT	10000 Cycles	125 V	Green	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW03N-C	5 A	No Marking	On-Mom	Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin			SPDT	10000 Cycles	125 V	Red	Button Square	70 °C	-20 C	30 V
NKK Switches UB15SKW036G-JB	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Blue LED	2.9 VDC	SPDT	10000 Cycles	125 V	Clear	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW036G	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Blue LED	2.9 VDC	SPDT	10000 Cycles	125 V		Plunger for Cap	50 °C	-25 °C	30 V
