UB15SKW03N-A

Active

NKK Switches

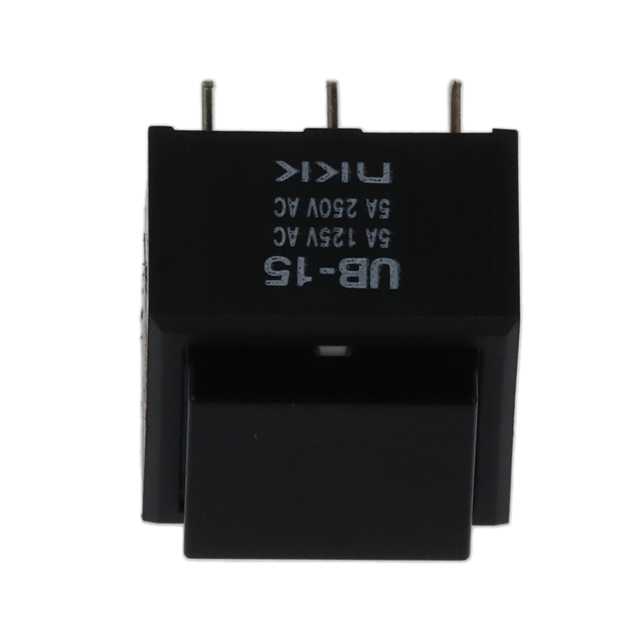

PUSHBUTTON SWITCH, UB SERIES, SPDT, ON-(ON), SQUARE, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

UB15SKW03N-A

Active

NKK Switches

PUSHBUTTON SWITCH, UB SERIES, SPDT, ON-(ON), SQUARE, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB15SKW03N-A

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Process Sealed
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB15SKW Series

Part	Current Rating (Amps)	Actuator Marking	Switch Function	Type	Mounting Type	Features	Mechanical Life	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Circuit	Electrical Life	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
NKK Switches UB15SKW035F-FF	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Green LED	2.1 VDC	SPDT	10000 Cycles	125 V	Green	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035D-DJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Amber LED	2 VDC	SPDT	10000 Cycles	125 V	Amber	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035C-JC	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	LED Red	1.85 VDC	SPDT	10000 Cycles	125 V	Clear (Red Filter/Diffuser)	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW03N-A	5 A	No Marking	On-Mom	Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin			SPDT	10000 Cycles	125 V	Black	Button Square	70 °C	-20 C	30 V
NKK Switches UB15SKW036B-JJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	LED White	2.9 VDC	SPDT	10000 Cycles	125 V	Clear	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW035D	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Amber LED	2 VDC	SPDT	10000 Cycles	125 V		Plunger for Cap	50 °C	-25 °C	30 V
NKK Switches UB15SKW035F-FJ	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Green LED	2.1 VDC	SPDT	10000 Cycles	125 V	Green	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW03N-C	5 A	No Marking	On-Mom	Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin			SPDT	10000 Cycles	125 V	Red	Button Square	70 °C	-20 C	30 V
NKK Switches UB15SKW036G-JB	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Blue LED	2.9 VDC	SPDT	10000 Cycles	125 V	Clear	Button Square	50 °C	-25 °C	30 V
NKK Switches UB15SKW036G	5 A	No Marking	On-Mom	Illuminated Standard	Through Hole	Process Sealed	1000000 Cycles	PC Pin	Blue LED	2.9 VDC	SPDT	10000 Cycles	125 V		Plunger for Cap	50 °C	-25 °C	30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.67
		10	$ 6.89
		25	$ 6.58
		40	$ 6.29
		80	$ 6.04
		230	$ 5.73
		440	$ 5.30
		945	$ 5.06
Newark	Each	1	$ 14.26
		5	$ 13.30
		10	$ 12.23
		25	$ 11.16
		50	$ 10.10
		100	$ 8.92
		250	$ 8.01

Description

General part information

UB15SKW Series

Pushbutton Switch SPDT Standard Through Hole
