8119

Obsolete

Bourns Inc.

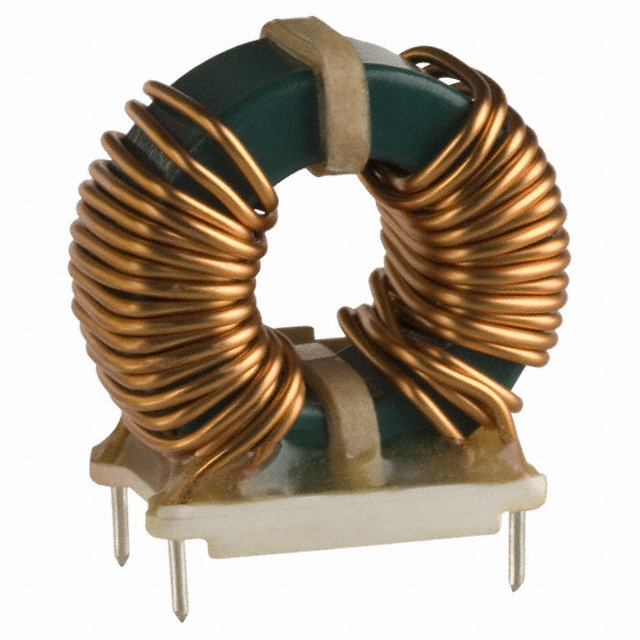

CMC 4MH 14.5A 2LN TH

Search across all available documentation for this part.

Obsolete

Bourns Inc.

CMC 4MH 14.5A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max) [Max]	Mounting Type	Package / Case	Package / Case	Inductance @ Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Height (Max) [Max]	Height (Max)	Height (Max)
Bourns Inc. 8118	32 mOhm	Through Hole	4 Lead	Vertical	7.3 mH	0.8 in	41.91 mm	1.65 in	20.32 mm	9.3 A	2	105 ░C	-55 °C	1.65 "	41.91 mm
Bourns Inc. 8119		Through Hole	4 Lead	Vertical	4 mH	0.9 "	43.18 mm	1.7 "	22.86 mm	14.5 A	2	105 ░C	-55 °C	1.65 "	41.91 mm
Bourns Inc. 8113	22 mOhm	Through Hole	4 Lead	Vertical	5 mH	0.8 in	36.83 mm	1.45 "	20.32 mm	8.9 A	2	105 ░C	-55 °C			1.5 in	38.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 14.5A DCR 12mOhm
