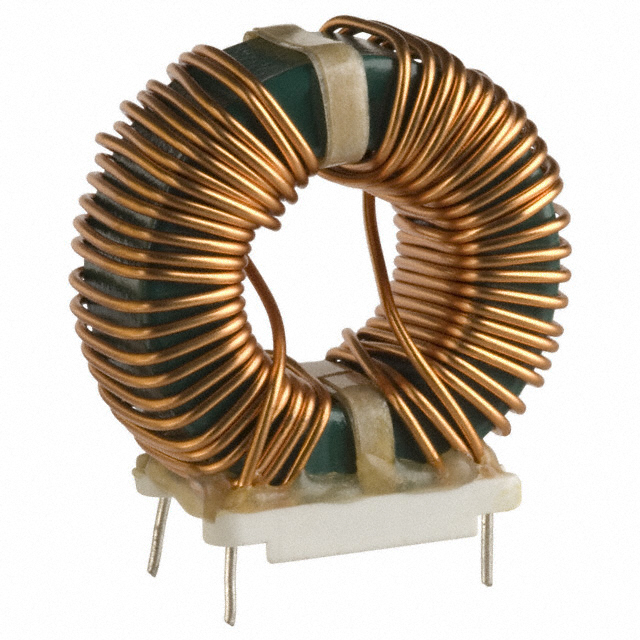

8118
ObsoleteBourns Inc.
CMC 7.3MH 9.3A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8118
ObsoleteBourns Inc.
CMC 7.3MH 9.3A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8118 |
|---|---|
| Current Rating (Max) [Max] | 9.3 A |
| DC Resistance (DCR) (Max) [Max] | 32 mOhm |
| Height (Max) [Max] | 1.65 " |
| Height (Max) [Max] | 41.91 mm |
| Inductance @ Frequency | 7.3 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 41.91 mm |
| Size / Dimension [x] | 1.65 in |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.78 | |
| 10 | $ 1.33 | |||
| 100 | $ 0.98 | |||
| 1000 | $ 0.73 | |||
| 5000 | $ 0.67 | |||
| 10000 | $ 0.62 | |||
Description
General part information
811 Series
7.3 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 9.3A DCR 32mOhm
