8113
ObsoleteBourns Inc.

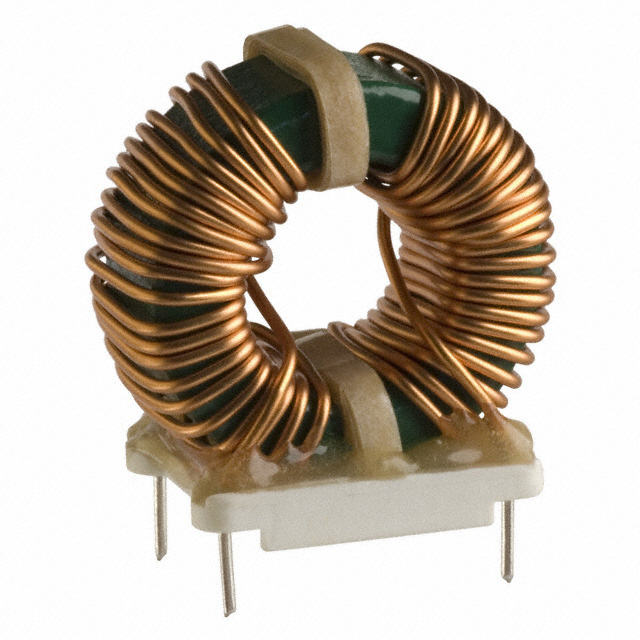

CMC 5MH 8.9A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8113
ObsoleteBourns Inc.
CMC 5MH 8.9A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8113 |
|---|---|
| Current Rating (Max) [Max] | 8.9 A |
| DC Resistance (DCR) (Max) [Max] | 22 mOhm |
| Height (Max) | 1.5 in |
| Height (Max) | 38.1 mm |
| Inductance @ Frequency | 5 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 1.45 " |
| Size / Dimension [x] | 36.83 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 25 | $ 0.37 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.21 | |||
| 2500 | $ 0.20 | |||
Description
General part information
811 Series
5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 8.9A DCR 22mOhm
