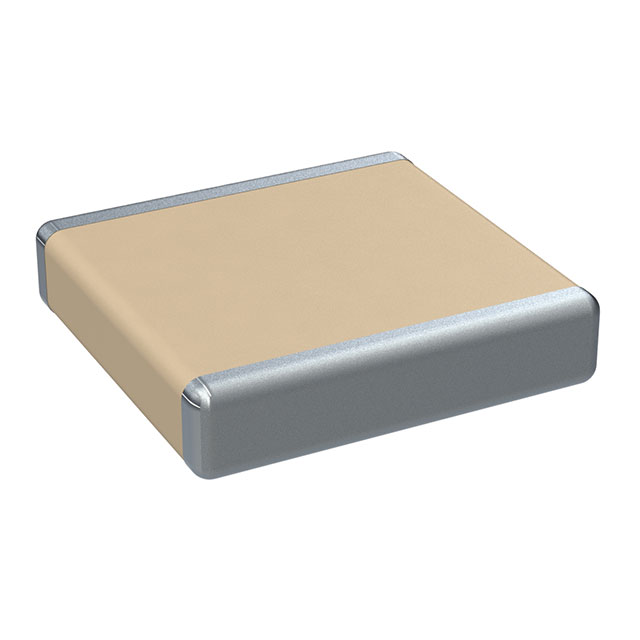

C2225X105K1RACAUTO

Active

KEMET

CAP CERAMIC 1UF 100V X7R 10% PAD SMD 2225 FLEXIBLE TERMINATION 125°C MEDICAL T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C2225X105K1RACAUTO

C2225X105K1RACAUTO

Active

KEMET

CAP CERAMIC 1UF 100V X7R 10% PAD SMD 2225 FLEXIBLE TERMINATION 125°C MEDICAL T/R AUTOMOTIVE AEC-Q200

Deep-Dive with AI

DocumentsDatasheet C2225X105K1RACAUTO

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2225X105K1RACAUTO

Applications	Boardflex Sensitive, Automotive
Capacitance	1 µF
Features	Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2225
Package / Case	5763 Metric
Ratings	AEC-Q200
Size / Dimension [x]	5.9 mm, 0.232 "
Size / Dimension [y]	0.252 ", 6.4 mm
Temperature Coefficient	X7R
Thickness (Max)	1.45 mm
Thickness (Max) [Max] [custom]	0.057 in
Tolerance	10 %
Voltage - Rated	100 V

C2225X Series

Part	Features	Voltage - Rated	Voltage - Rated	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Applications	Thickness (Max) [Max]	Thickness (Max)	Capacitance	Thickness (Max) [Max]	Ratings	Thickness (Max) [Max] [custom]
KEMET C2225X682JFGACAUTO
KEMET C2225X102JZGACTU	High Voltage Low ESL Soft Termination	2.5 kV	2.5 kV	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	0.252 in	5.6 mm	0.22 in	6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.071 "	1.8 mm	0.001 µF
KEMET C2225X104KFRAC7800	High Voltage Low ESL Soft Termination	1500 V	1.5 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.106 "		100000 pF	2.7 mm
KEMET C2225X393JDGACAUTO	High Voltage Low ESL Soft Termination	1000 V	1 kV	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.106 "		0.039 µF	2.7 mm	AEC-Q200
KEMET C2225X125K2RAC7800	Soft Termination	200 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.061 in	1.55 mm	1.2 µF
KEMET C2225X104KFRACAUTO	High Voltage Low ESL Soft Termination	1500 V	1.5 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.106 "		100000 pF	2.7 mm	AEC-Q200
KEMET C2225X223KGRAC7800	High Voltage Low ESL Soft Termination	2000 V	2 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.106 "		0.022 µF	2.7 mm
KEMET C2225X103KHRAC7800	High Voltage Low ESL Soft Termination			2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.087 in		10000 pF	2.2 mm
KEMET C2225X105K1RACAUTO	Soft Termination	100 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive		1.45 mm	1 µF		AEC-Q200	0.057 in
KEMET C2225X224KCRACAUTO	High Voltage Soft Termination	500 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.071 "	1.8 mm	0.22 µF		AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.07
		10	$ 3.50
		50	$ 3.18
		100	$ 2.62
		500	$ 2.28
	Digi-Reel®	1	$ 4.07
		10	$ 3.50
		50	$ 3.18
		100	$ 2.62
		500	$ 2.28
	Tape & Reel (TR)	1000	$ 2.23
		2000	$ 2.13
		3000	$ 2.09
Newark	Each (Supplied on Full Reel)	1	$ 2.67
		2000	$ 2.54
		4000	$ 2.36
		8000	$ 2.20
		12000	$ 2.12
		20000	$ 2.08

Description

General part information

C2225X Series

1 µF ±10% 100V Ceramic Capacitor X7R 2225 (5763 Metric)
