C2225X103KHRAC7800

Active

KEMET

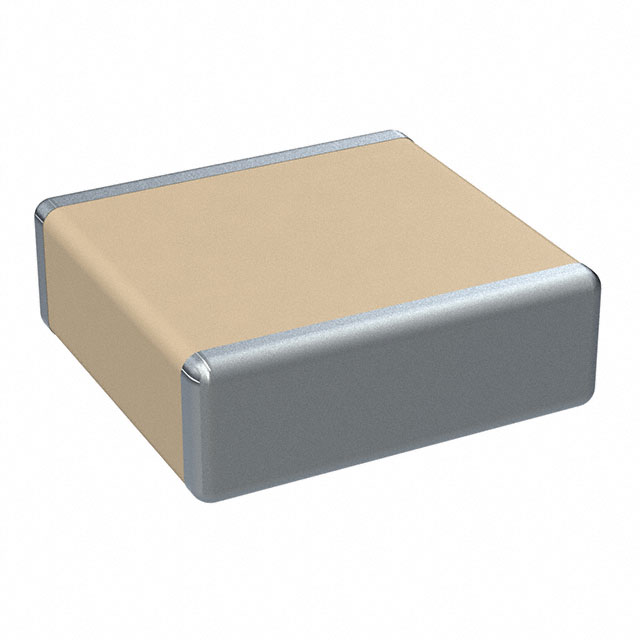

CAP CERAMIC 0.01UF 3000V X7R 10% PAD SMD 2225 FLEXITERM 125°C MEDICAL T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC2225X103KHRACTU Datasheet +1

C2225X103KHRAC7800

Active

KEMET

CAP CERAMIC 0.01UF 3000V X7R 10% PAD SMD 2225 FLEXITERM 125°C MEDICAL T/R

Deep-Dive with AI

DocumentsC2225X103KHRACTU Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2225X103KHRAC7800

Applications	Boardflex Sensitive
Capacitance	10000 pF
Features	Low ESL, High Voltage, Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2225
Package / Case	5763 Metric
Size / Dimension [x]	5.9 mm, 0.232 "
Size / Dimension [y]	0.252 ", 6.4 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.087 in
Thickness (Max) [Max]	2.2 mm
Tolerance	10 %

C2225X Series

Part	Features	Voltage - Rated	Voltage - Rated	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Applications	Thickness (Max) [Max]	Thickness (Max)	Capacitance	Thickness (Max) [Max]	Ratings	Thickness (Max) [Max] [custom]
KEMET C2225X682JFGACAUTO
KEMET C2225X102JZGACTU	High Voltage Low ESL Soft Termination	2.5 kV	2.5 kV	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	0.252 in	5.6 mm	0.22 in	6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.071 "	1.8 mm	0.001 µF
KEMET C2225X104KFRAC7800	High Voltage Low ESL Soft Termination	1500 V	1.5 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.106 "		100000 pF	2.7 mm
KEMET C2225X393JDGACAUTO	High Voltage Low ESL Soft Termination	1000 V	1 kV	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.106 "		0.039 µF	2.7 mm	AEC-Q200
KEMET C2225X125K2RAC7800	Soft Termination	200 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.061 in	1.55 mm	1.2 µF
KEMET C2225X104KFRACAUTO	High Voltage Low ESL Soft Termination	1500 V	1.5 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.106 "		100000 pF	2.7 mm	AEC-Q200
KEMET C2225X223KGRAC7800	High Voltage Low ESL Soft Termination	2000 V	2 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.106 "		0.022 µF	2.7 mm
KEMET C2225X103KHRAC7800	High Voltage Low ESL Soft Termination			2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.087 in		10000 pF	2.2 mm
KEMET C2225X105K1RACAUTO	Soft Termination	100 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive		1.45 mm	1 µF		AEC-Q200	0.057 in
KEMET C2225X224KCRACAUTO	High Voltage Soft Termination	500 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.071 "	1.8 mm	0.22 µF		AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.81
		10	$ 2.16
		50	$ 1.98
		100	$ 1.64
	Digi-Reel®	1	$ 2.81
		10	$ 2.16
		50	$ 1.98
		100	$ 1.64
	Tape & Reel (TR)	500	$ 1.27
		1000	$ 1.20
		1500	$ 1.16
		2500	$ 1.12
		3500	$ 1.10
		5000	$ 1.07

Description

General part information

C2225X Series

10000 pF ±10% 3000V (3kV) Ceramic Capacitor X7R 2225 (5763 Metric)

Documents

Technical documentation and resources

C2225X103KHRACTU

Datasheet

KEM_C1025_X7R_HV_FT-CAP_SMD.pdf

Datasheet
