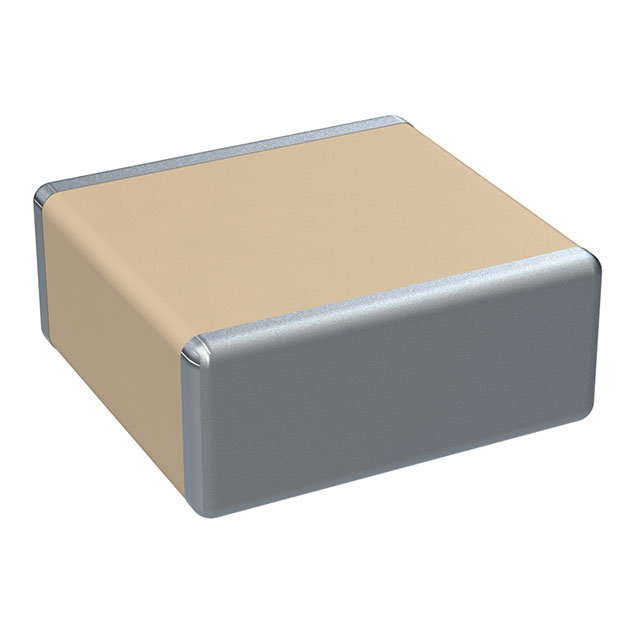

C2225X393JDGACAUTO

Active

KEMET

SMD MULTILAYER CERAMIC CAPACITOR, 0.039 ΜF, 1 KV, 2225 [5664 METRIC], ± 5%, C0G / NP0

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +2

C2225X393JDGACAUTO

Active

KEMET

SMD MULTILAYER CERAMIC CAPACITOR, 0.039 ΜF, 1 KV, 2225 [5664 METRIC], ± 5%, C0G / NP0

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2225X393JDGACAUTO

Applications	Boardflex Sensitive, Automotive
Capacitance	0.039 µF
Features	Low ESL, High Voltage, Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2225
Package / Case	5763 Metric
Ratings	AEC-Q200
Size / Dimension [x]	5.9 mm, 0.232 "
Size / Dimension [y]	0.252 ", 6.4 mm
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.106 "
Thickness (Max) [Max]	2.7 mm
Tolerance	5 %
Voltage - Rated	1 kV
Voltage - Rated	1000 V

C2225X Series

Part	Features	Voltage - Rated	Voltage - Rated	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Applications	Thickness (Max) [Max]	Thickness (Max)	Capacitance	Thickness (Max) [Max]	Ratings	Thickness (Max) [Max] [custom]
KEMET C2225X682JFGACAUTO
KEMET C2225X102JZGACTU	High Voltage Low ESL Soft Termination	2.5 kV	2.5 kV	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	0.252 in	5.6 mm	0.22 in	6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.071 "	1.8 mm	0.001 µF
KEMET C2225X104KFRAC7800	High Voltage Low ESL Soft Termination	1500 V	1.5 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.106 "		100000 pF	2.7 mm
KEMET C2225X393JDGACAUTO	High Voltage Low ESL Soft Termination	1000 V	1 kV	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.106 "		0.039 µF	2.7 mm	AEC-Q200
KEMET C2225X125K2RAC7800	Soft Termination	200 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.061 in	1.55 mm	1.2 µF
KEMET C2225X104KFRACAUTO	High Voltage Low ESL Soft Termination	1500 V	1.5 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.106 "		100000 pF	2.7 mm	AEC-Q200
KEMET C2225X223KGRAC7800	High Voltage Low ESL Soft Termination	2000 V	2 kV	2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.106 "		0.022 µF	2.7 mm
KEMET C2225X103KHRAC7800	High Voltage Low ESL Soft Termination			2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Boardflex Sensitive	0.087 in		10000 pF	2.2 mm
KEMET C2225X105K1RACAUTO	Soft Termination	100 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive		1.45 mm	1 µF		AEC-Q200	0.057 in
KEMET C2225X224KCRACAUTO	High Voltage Soft Termination	500 V		2225	5763 Metric	-55 °C	125 °C	X7R	10 %		0.232 " 5.9 mm		0.252 " 6.4 mm	MLCC Surface Mount	Automotive Boardflex Sensitive	0.071 "	1.8 mm	0.22 µF		AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.07
		10	$ 6.13
		50	$ 5.50
		100	$ 4.78
	Digi-Reel®	1	$ 7.07
		10	$ 6.13
		50	$ 5.50
		100	$ 4.78
	Tape & Reel (TR)	500	$ 4.32
		1000	$ 4.01
		2500	$ 3.93
Newark	Each (Supplied on Full Reel)	400	$ 4.36
		800	$ 4.24
		1600	$ 3.99
		2400	$ 3.80

Description

General part information

C2225X Series

0.039 µF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric)
