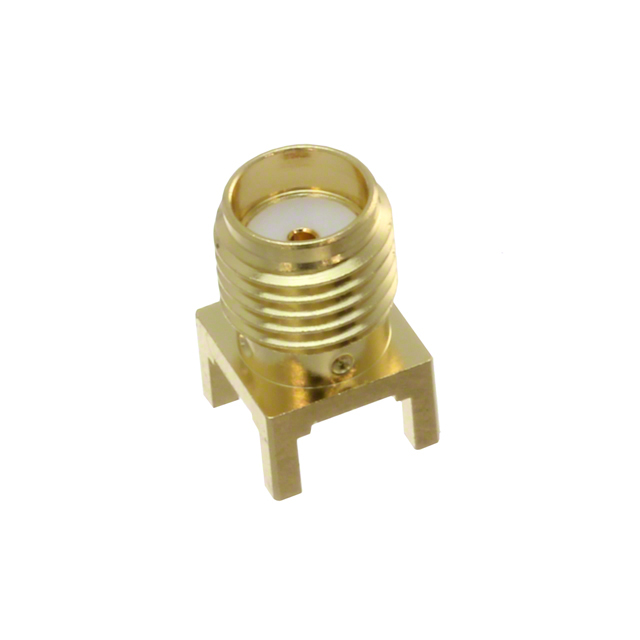

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
SMA-J-P-H-ST-MT1
ActiveSamtec Inc.
RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-J-P-H-ST-MT1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 20 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount, Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
SMA-J Series
RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT
| Part | Voltage Rating | Body Finish | Center Contact Material | Center Contact Plating | Connector Type | Connector Style | Impedance | Body Material | Contact Termination | Mounting Feature | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Frequency - Max [Max] | Number of Ports | Shield Termination | Features | Includes | Cable Group | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Flange | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | Flange | |||
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Bulkhead | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | 1 Connector 1 Ferrule 1 Lockwasher 1 Nut | |||
Samtec Inc. | 335 V | Gold | Brass | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Bulkhead | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | 1 Connector 1 Ferrule 1 Lockwasher 1 Nut | 316 RG-174 | ||
Samtec Inc. | 335 V | Gold | Beryllium Copper | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Board Edge End Launch | ||||
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Surface Mount Right Angle | ||||
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Surface Mount Through Hole | ||||
Samtec Inc. | 335 V | Gold | Beryllium Copper | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Flange | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | Flange | 316 RG-174 | ||
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Bulkhead | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Crimp | 1 Connector 1 Ferrule 1 Lockwasher 1 Nut | 316 RG-174 | ||
Samtec Inc. | 335 V | Gold | Copper Alloy | Gold | Female Socket Jack | SMA | 50 Ohms | Brass | Solder | Polytetrafluoroethylene (PTFE) | 125 °C | -65 ░C | Gold | 20 GHz | 1 | Solder | Board Edge Cutout Surface Mount |
