Specification	SMA-J-C-H-ST-BR1

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	20 Gbps
Housing Color	Gold
Impedance	50 Ohm
Includes	Connector, Nut, Lockwasher, Ferrule
Includes Total Count	4 pcs
Mounting Feature	Bulkhead
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	335 V

SMA-J Series

RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT

Part	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Body Material	Center Contact Plating	Voltage Rating	Shield Termination	Contact Termination	Features	Frequency - Max	Housing Color	Impedance	Mounting Feature	Number of Ports	Connector Style	Fastening Type	Mounting Type	Center Contact Material	Connector Type	Includes	Includes Total Count	Cable Group

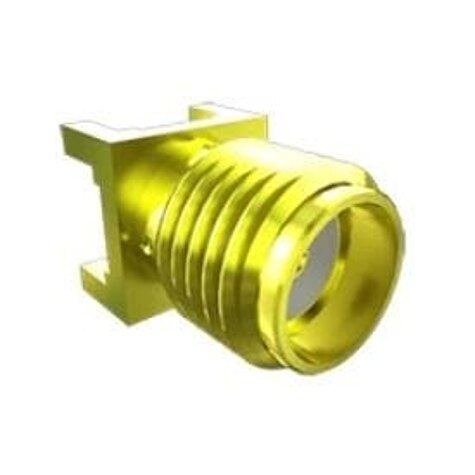

Samtec Inc. SMA-J-P-H-ST-PN4	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Crimp	Solder	Flange	20 Gbps	Gold	50 Ohm	Flange	1	SMA	Threaded	Panel Mount	Copper Alloy	Female Socket Jack
Samtec Inc. SMA-J-C-H-ST-BH4	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Crimp	Solder		20 Gbps	Gold	50 Ohm	Bulkhead	1	SMA	Threaded	Panel Mount	Copper Alloy	Female Socket Jack	Connector Ferrule Lockwasher Nut	4 pcs
Samtec Inc. SMA-J-C-H-ST-BR1	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Crimp	Solder		20 Gbps	Gold	50 Ohm	Bulkhead	1	SMA	Threaded	Panel Mount	Brass	Female Socket Jack	Connector Ferrule Lockwasher Nut	4 pcs	316 RG-174
Samtec Inc. SMA-J-P-H-ST-EM1	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Solder	Solder		20 Gbps	Gold	50 Ohm		1	SMA	Threaded	Board Edge End Launch	Beryllium Copper	Female Socket Jack
Samtec Inc. SMA-J-P-GF-RA-SM1	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Solder	Solder		20 Gbps	Gold	50 Ohm		1	SMA	Threaded	Right Angle Surface Mount	Copper Alloy	Female Socket Jack
Samtec Inc. SMA-J-P-H-ST-MT1	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Solder	Solder		20 Gbps	Gold	50 Ohm		1	SMA	Threaded	Surface Mount Through Hole	Copper Alloy	Female Socket Jack
Samtec Inc. SMA-J-C4-H-ST-PN1	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Crimp	Solder	Flange	20 Gbps	Gold	50 Ohm	Flange	1	SMA	Threaded	Panel Mount	Beryllium Copper	Female Socket Jack			316 RG-174
Samtec Inc. SMA-J-C-H-ST-SB1	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Crimp	Solder		20 Gbps	Gold	50 Ohm	Bulkhead	1	SMA	Threaded	Panel Mount	Copper Alloy	Female Socket Jack	Connector Ferrule Lockwasher Nut	4 pcs	316 RG-174
Samtec Inc. SMA-J-P-H-ST-EM3	Polytetrafluoroethylene (PTFE)	125 °C	-65 °C	Gold	Brass	Gold	335 V	Solder	Solder		20 Gbps	Gold	50 Ohm		1	SMA	Threaded	Board Edge Cutout Surface Mount	Copper Alloy	Female Socket Jack
