SMA-J-P-H-ST-EM3

Active

Samtec Inc.

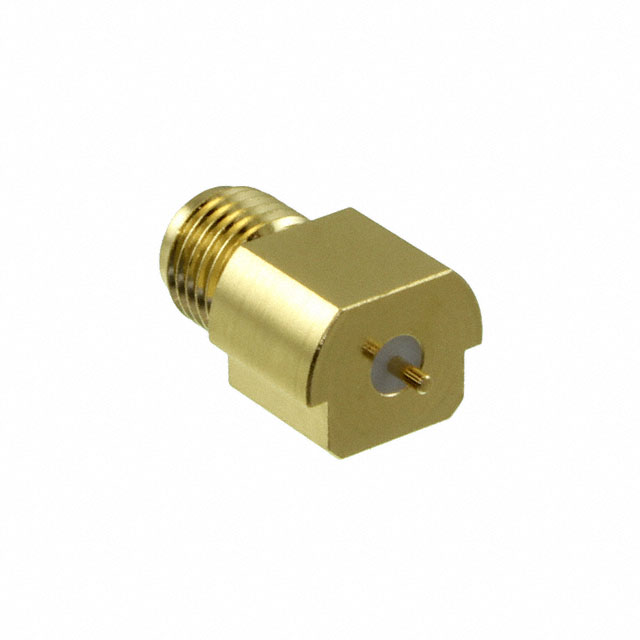

CONN SMA JACK STR 50 OHM EDGEMNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMA Datasheet SMA Series Other Related Documents 03 +1

SMA-J-P-H-ST-EM3

Active

Samtec Inc.

CONN SMA JACK STR 50 OHM EDGEMNT

Deep-Dive with AI

DocumentsSMA Datasheet SMA Series Other Related Documents 03 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMA-J-P-H-ST-EM3

Body Finish	Gold
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	20 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

SMA-J Series

RF Connectors / Coaxial Connectors SMA PANEL FEED THRU JACK RECPT

Part	Voltage Rating	Body Finish	Center Contact Material	Center Contact Plating	Connector Type	Connector Style	Impedance	Body Material	Contact Termination	Mounting Feature	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Frequency - Max [Max]	Number of Ports	Shield Termination	Features	Includes	Cable Group	Mounting Type
Samtec Inc. SMA-J-P-H-ST-PN4	335 V	Gold	Copper Alloy	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder	Flange	Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Crimp	Flange
Samtec Inc. SMA-J-C-H-ST-BH4	335 V	Gold	Copper Alloy	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder	Bulkhead	Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Crimp		1 Connector 1 Ferrule 1 Lockwasher 1 Nut
Samtec Inc. SMA-J-C-H-ST-BR1	335 V	Gold	Brass	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder	Bulkhead	Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Crimp		1 Connector 1 Ferrule 1 Lockwasher 1 Nut	316 RG-174
Samtec Inc. SMA-J-P-H-ST-EM1	335 V	Gold	Beryllium Copper	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder		Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Solder				Board Edge End Launch
Samtec Inc. SMA-J-P-GF-RA-SM1	335 V	Gold	Copper Alloy	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder		Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Solder				Surface Mount Right Angle
Samtec Inc. SMA-J-P-H-ST-MT1	335 V	Gold	Copper Alloy	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder		Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Solder				Surface Mount Through Hole
Samtec Inc. SMA-J-C4-H-ST-PN1	335 V	Gold	Beryllium Copper	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder	Flange	Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Crimp	Flange		316 RG-174
Samtec Inc. SMA-J-C-H-ST-SB1	335 V	Gold	Copper Alloy	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder	Bulkhead	Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Crimp		1 Connector 1 Ferrule 1 Lockwasher 1 Nut	316 RG-174
Samtec Inc. SMA-J-P-H-ST-EM3	335 V	Gold	Copper Alloy	Gold	Female Socket Jack	SMA	50 Ohms	Brass	Solder		Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C	Gold	20 GHz	1	Solder				Board Edge Cutout Surface Mount
