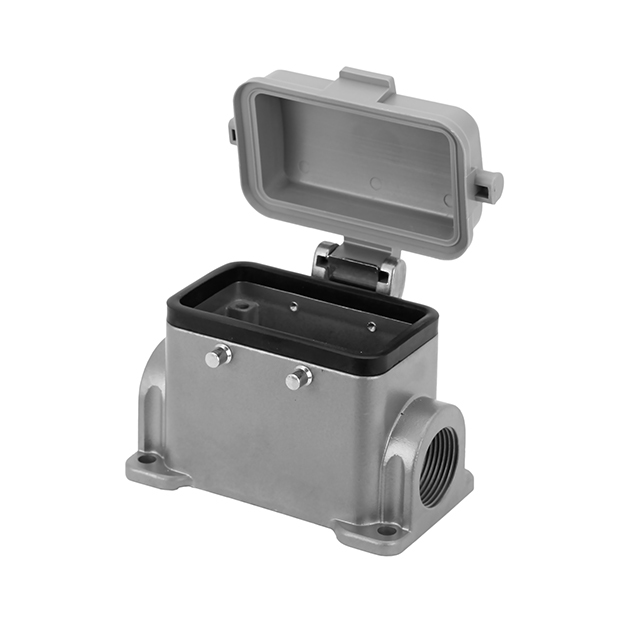

Specification	C146 10N010 604 1

Connector Type	Base - Box Mount
Features	Feed Through, Cover
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (2) on Hood
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Size	E10
Size / Dimension Height	2.244 in
Size / Dimension Length	3.701 in
Size / Dimension Width	2.126 in
Style	Side Entry
Thread Size	M25

C146 10N010 Series

Part	Lock Location	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Ingress Protection IP Rating	Ingress Protection Description	Connector Type	Style	Operating Temperature (Max)	Operating Temperature (Min)	Features	Size	Housing Material	Thread Size
Amphenol Tuchel Industrial C146 10N010 806 2	Locking Clip (1) on Base Bottom	3.701 in	2.913 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C	Cover	E10	Aluminum Alloy Die Cast	M32
Amphenol Tuchel Industrial C146 10N010 802 2	Locking Clip (1) on Base Bottom	3.701 in	2.913 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C		E10	Aluminum Alloy Die Cast	M32
Amphenol Tuchel Industrial C146 10N010 803 1	Locking Clip (1) on Base Bottom	3.701 in	2.244 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C		E10	Aluminum Alloy Die Cast	M20
Amphenol Tuchel Industrial C146 10N010 609 1	Locking Clip (2) on Hood	3.701 in	2.244 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C	Feed Through	E10	Aluminum Alloy Die Cast	M20
Amphenol Tuchel Industrial C146 10N010 604 1	Locking Clip (2) on Hood	3.701 in	2.244 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C	Cover Feed Through	E10	Aluminum Alloy Die Cast	M25
Amphenol Tuchel Industrial C146 10N010 508 2	Locking Clip (2) on Hood	3.701 in	2.913 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C		E10	Aluminum Alloy Die Cast	M32
Amphenol Tuchel Industrial C146 10N010 802 1	Locking Clip (1) on Base Bottom	3.701 in	2.244 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C		E10	Aluminum Alloy Die Cast	M25
Amphenol Tuchel Industrial C146 10N010 600 2	Locking Clip (2) on Base Bottom	3.701 in	2.913 in	2.126 in	IP65	Dust Tight Water Resistant	Base - Box Mount	Side Entry	100 °C	-40 °C	Feed Through	E10	Aluminum Alloy Die Cast	M32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

C146 10N010 604 1 | Datasheet
