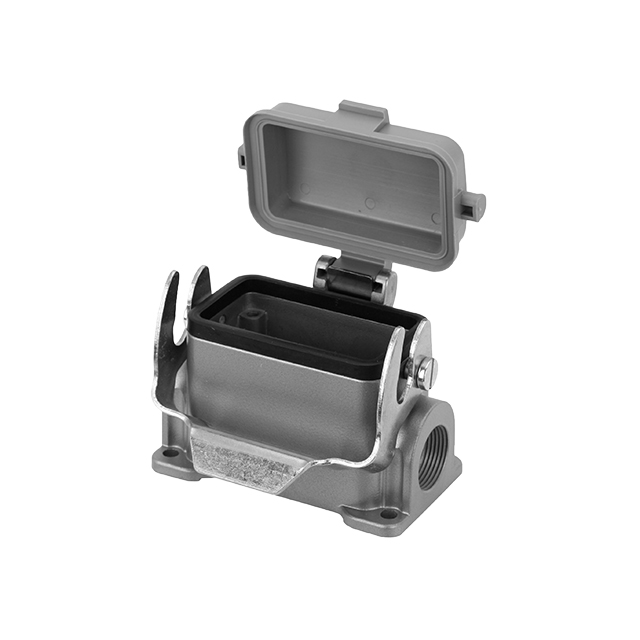

C146 10N010 806 2
ActiveAmphenol Tuchel Industrial
CONN BASE SIDE ENTRY SZE10 M32
Deep-Dive with AI
Search across all available documentation for this part.
C146 10N010 806 2
ActiveAmphenol Tuchel Industrial
CONN BASE SIDE ENTRY SZE10 M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 10N010 806 2 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Cover |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E10 |
| Size / Dimension [x] | 3.701 " |
| Size / Dimension [x] | 94 mm |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [y] | 2.126 in |
| Size / Dimension [z] | 2.913 in |
| Size / Dimension [z] | 74 mm |
| Style | Side Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 60.46 | |
Description
General part information
C146 10N010 806 2
Base - Box Mount Connector Side Entry M32 E10 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
