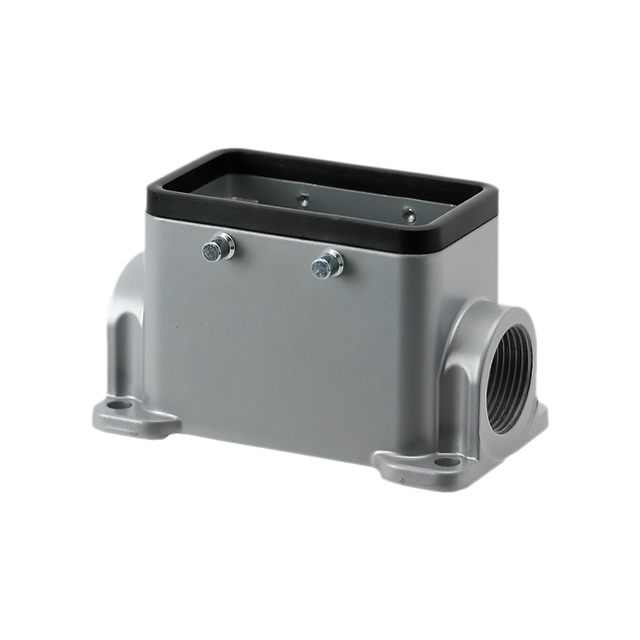

C146 10N010 609 1

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE10 M20

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE10 M20

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10N010 609 1

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	3.701 "
Size / Dimension [x]	94 mm
Size / Dimension [y]	2.126 in
Size / Dimension [y]	54 mm
Size / Dimension [z]	57 mm
Size / Dimension [z]	2.244 "
Style	Side Entry
Thread Size	M20

Part	Size	Housing Material	Connector Type	Style	Thread Size	Ingress Protection	Lock Location	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features
Amphenol Tuchel Industrial C146 10N010 802 2	E10	Aluminum Alloy Die Cast	Base - Box Mount	Side Entry	M32	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	3.701 "	54 mm	2.126 in	2.913 in	94 mm	74 mm	100 °C	-40 °C
Amphenol Tuchel Industrial C146 10N010 803 1	E10	Aluminum Alloy Die Cast	Base - Box Mount	Side Entry	M20	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	3.701 "	54 mm	2.126 in	2.244 "	94 mm	57 mm	100 °C	-40 °C
Amphenol Tuchel Industrial C146 10N010 609 1	E10	Aluminum Alloy Die Cast	Base - Box Mount	Side Entry	M20	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	3.701 "	54 mm	2.126 in	2.244 "	94 mm	57 mm	100 °C	-40 °C	Feed Through
Amphenol Tuchel Industrial C146 10N010 604 1	E10	Aluminum Alloy Die Cast	Base - Box Mount	Side Entry	M25	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	3.701 "	54 mm	2.126 in	2.244 "	94 mm	57 mm	100 °C	-40 °C
