SRH2-4440

Active

AUTONICS

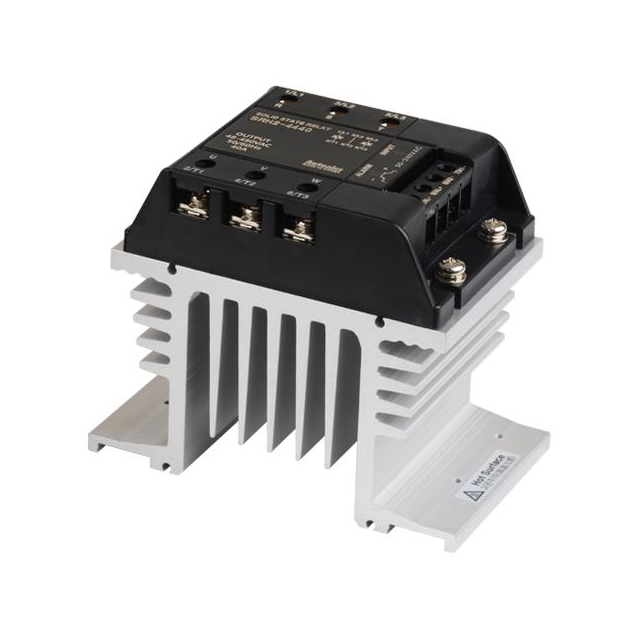

SSR RELAY 3PST-NO 40A 48-480V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRH2-4440

Active

AUTONICS

SSR RELAY 3PST-NO 40A 48-480V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SRH2-4440	- Series

Circuit	3PST-NO (3 Form A)	SPST-NO (1 Form A), SPDT (1 Form C), 3PST-NO (3 Form A), DPDT (2 Form C)
Contact Rating @ Voltage	-	3 - 250 VAC
Delay Time	-	1 - 60 Sec
Delay Time	-	5 - 9990 Hrs
Delay Time	-	0.01 - 0.05 Sec
Delay Time	-	Fixed, Weekly, Yearly
Display Characters - Height	-	0.315 in
Display Characters - Height	-	8 mm
Display Characters - Height	-	10 - 14 mm
Display Characters - Height	-	0.394 - 0.551 in
Display Type	-	LED - Red Characters
Features	-	Pulse Meter
Function	-	On-Delay, Programmable (Multi-Function)
Load Current	40 A	15 - 75 A
Measuring Range	-	Multiple
Measuring Range	-	0 A
Measuring Range	-	20 mA
Measuring Type	-	Process
Mounting Type	Chassis Mount, DIN Rail	Chassis Mount, DIN Rail, Socketable, Panel Mount, Chassis Mount or Panel Mount
Number of Characters Per Row	-	4 - 5
Output Type	AC, Zero Cross	AC, Zero Cross, Solid State (5), BCD Output, Relay (3), PV Output, Solid State (5), BCD Output, Solid State (5), PV Output
Output Type	-	1.81 mOhm
Package / Case	SSR with Integrated Heat Sink	SSR with Integrated Heat Sink, Module
Panel Cutout Dimensions	-	45 - 92 mm
Panel Cutout Dimensions	-	22.2 - 68 mm
Relay Type	-	Solid State Relay, Mechanical Relay
Supplier Device Package	Module	Module
Termination Style	Screw Terminal	Plug In, 8 Pin (Octal), Screw Terminal
Timing Adjustment Method	-	Hand Dial, DIP Switches, Up/Down Digit Keys
Timing Initiate Method	-	Input Voltage
Type	-	Process Meter
Voltage - Input	-	24 VAC
Voltage - Input [Max]	240 VAC	30 - 240 VAC
Voltage - Input [Min]	90 VAC	4 - 90 VAC
Voltage - Load [Max]	480 V	240 - 480 V
Voltage - Load [Min]	48 V	24 - 48 V
Voltage - Supply	-	24 - 240 VAC
Voltage - Supply	-	12 - 110 VAC
Voltage - Supply	-	12 - 24 VDC
Voltage - Supply	-	Loop Power

- Series

RELAY TIME DELAY 6SEC 3A 250V

Part	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Delay Time	Timing Adjustment Method	Contact Rating @ Voltage	Function	Circuit	Mounting Type	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Output Type	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Type	Display Characters - Height [y]	Display Characters - Height [y]	Features	Measuring Range	Measuring Type	Number of Characters Per Row	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Delay Time [Max]	Delay Time [Min]	Relay Type	Timing Initiate Method	Delay Time
AUTONICS ATE-6S	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	6 Sec	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)
AUTONICS SRH2-4440	Screw Terminal							3PST-NO (3 Form A)	Chassis Mount, DIN Rail	40 A	48 V	480 V	SSR with Integrated Heat Sink	AC, Zero Cross	Module	240 VAC	90 VAC
AUTONICS MP5Y-41	Screw Terminal	240 VAC	100 VAC											Solid State (5)				Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	68 mm	31.5 mm	LED - Red Characters
AUTONICS AT8N	Plug In, 8 Pin (Octal)	240 VDC, 240 VAC	24 V, 100 VAC		Hand Dial	5 A, 250 VAC	Programmable (Multi-Function)	DPDT (2 Form C), SPDT (1 Form C)																				100 Hrs	0.05 Sec
AUTONICS FS5E-I4	Plug In, 8 Pin (Octal)	240 VAC	100 VAC		DIP Switches	3 A, 250 VAC	On-Delay		Socketable																			5 Sec	0.05 Sec	Solid State Relay	Input Voltage
AUTONICS ATE-60M	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	60 Min	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)																								Fixed
AUTONICS MP5S-4N	Screw Terminal	240 VAC	100 VAC															Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	45.5 mm	45.5 mm	LED - Red Characters
AUTONICS MP5Y-43	Screw Terminal	240 VAC	100 VAC											BCD Output				Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	68 mm	31.5 mm	LED - Red Characters
AUTONICS LE7M-2	Screw Terminal	240 VAC	100 VAC		Up/Down Digit Keys	10 A, 250 VAC	Programmable (Multi-Function)		Chassis Mount, Panel Mount																					Mechanical Relay	Input Voltage	Weekly, Yearly
AUTONICS ATE-12H	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	12 Hrs	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)																								Fixed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 159.00

Description

General part information

- Series

Solid State 3PST-NO (3 Form A) SSR with Integrated Heat Sink
