FS5E-I4

Active

AUTONICS

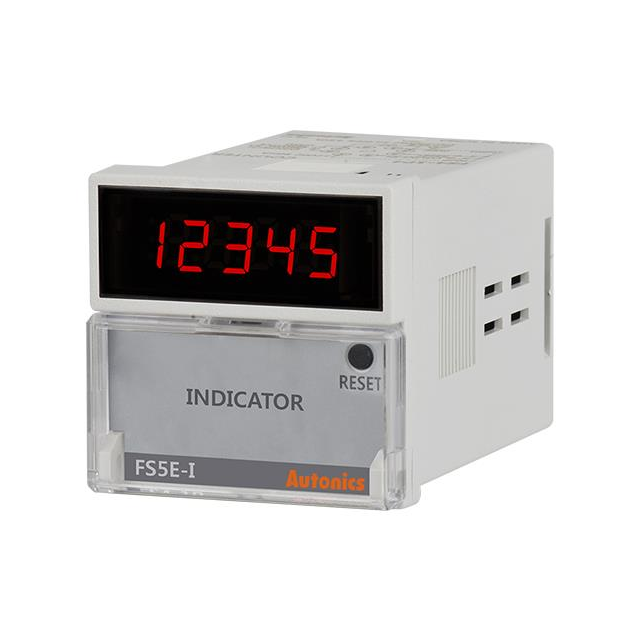

RELAY TIME DELAY 5SEC 3A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FS5E-I4

Active

AUTONICS

RELAY TIME DELAY 5SEC 3A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 113.00

Description

General part information

- Series

On-Delay Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 5 Sec Delay 3A @ 250VAC Socketable

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FS5E-I4	- Series

Circuit	-	SPST-NO (1 Form A), SPDT (1 Form C), 3PST-NO (3 Form A), DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 3 A	3 - 250 VAC
Delay Time	-	1 - 60 Sec
Delay Time	-	Fixed, Weekly, Yearly
Delay Time [Max]	5 Sec	5 - 9990 Hrs
Delay Time [Min]	0.05 Sec	0.01 - 0.05 Sec
Display Characters - Height	-	0.315 in
Display Characters - Height	-	8 mm
Display Characters - Height	-	10 - 14 mm
Display Characters - Height	-	0.394 - 0.551 in
Display Type	-	LED - Red Characters
Features	-	Pulse Meter
Function	On-Delay	On-Delay, Programmable (Multi-Function)
Load Current	-	15 - 75 A
Measuring Range	-	Multiple
Measuring Range	-	0 A
Measuring Range	-	20 mA
Measuring Type	-	Process
Mounting Type	Socketable	Chassis Mount, DIN Rail, Socketable, Panel Mount, Chassis Mount or Panel Mount
Number of Characters Per Row	-	4 - 5
Output Type	-	AC, Zero Cross, Solid State (5), BCD Output, Relay (3), PV Output, Solid State (5), BCD Output, Solid State (5), PV Output
Output Type	-	1.81 mOhm
Package / Case	-	SSR with Integrated Heat Sink, Module
Panel Cutout Dimensions	-	45 - 92 mm
Panel Cutout Dimensions	-	22.2 - 68 mm
Relay Type	Solid State Relay	Solid State Relay, Mechanical Relay
Supplier Device Package	-	Module
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal), Screw Terminal
Timing Adjustment Method	DIP Switches	Hand Dial, DIP Switches, Up/Down Digit Keys
Timing Initiate Method	Input Voltage	Input Voltage
Type	-	Process Meter
Voltage - Input	-	30 - 240 VAC
Voltage - Input	-	4 - 90 VAC
Voltage - Input	-	24 VAC
Voltage - Load	-	24 - 48 V
Voltage - Load	-	240 - 480 V
Voltage - Supply	-	12 - 24 VDC
Voltage - Supply	-	Loop Power
Voltage - Supply [Max]	240 VAC	24 - 240 VAC
Voltage - Supply [Min]	100 VAC	12 - 110 VAC

- Series

RELAY TIME DELAY 6SEC 3A 250V

Part	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Delay Time	Timing Adjustment Method	Contact Rating @ Voltage	Function	Circuit	Mounting Type	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Output Type	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Type	Display Characters - Height [y]	Display Characters - Height [y]	Features	Measuring Range	Measuring Type	Number of Characters Per Row	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Delay Time [Max]	Delay Time [Min]	Relay Type	Timing Initiate Method	Delay Time
AUTONICS ATE-6S	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	6 Sec	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)
AUTONICS SRH2-4440	Screw Terminal							3PST-NO (3 Form A)	Chassis Mount, DIN Rail	40 A	48 V	480 V	SSR with Integrated Heat Sink	AC, Zero Cross	Module	240 VAC	90 VAC
AUTONICS MP5Y-41	Screw Terminal	240 VAC	100 VAC											Solid State (5)				Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	68 mm	31.5 mm	LED - Red Characters
AUTONICS AT8N	Plug In, 8 Pin (Octal)	240 VDC, 240 VAC	24 V, 100 VAC		Hand Dial	5 A, 250 VAC	Programmable (Multi-Function)	DPDT (2 Form C), SPDT (1 Form C)																				100 Hrs	0.05 Sec
AUTONICS FS5E-I4	Plug In, 8 Pin (Octal)	240 VAC	100 VAC		DIP Switches	3 A, 250 VAC	On-Delay		Socketable																			5 Sec	0.05 Sec	Solid State Relay	Input Voltage
AUTONICS ATE-60M	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	60 Min	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)																								Fixed
AUTONICS MP5S-4N	Screw Terminal	240 VAC	100 VAC															Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	45.5 mm	45.5 mm	LED - Red Characters
AUTONICS MP5Y-43	Screw Terminal	240 VAC	100 VAC											BCD Output				Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	68 mm	31.5 mm	LED - Red Characters
AUTONICS LE7M-2	Screw Terminal	240 VAC	100 VAC		Up/Down Digit Keys	10 A, 250 VAC	Programmable (Multi-Function)		Chassis Mount, Panel Mount																					Mechanical Relay	Input Voltage	Weekly, Yearly
AUTONICS ATE-12H	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	12 Hrs	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)																								Fixed
