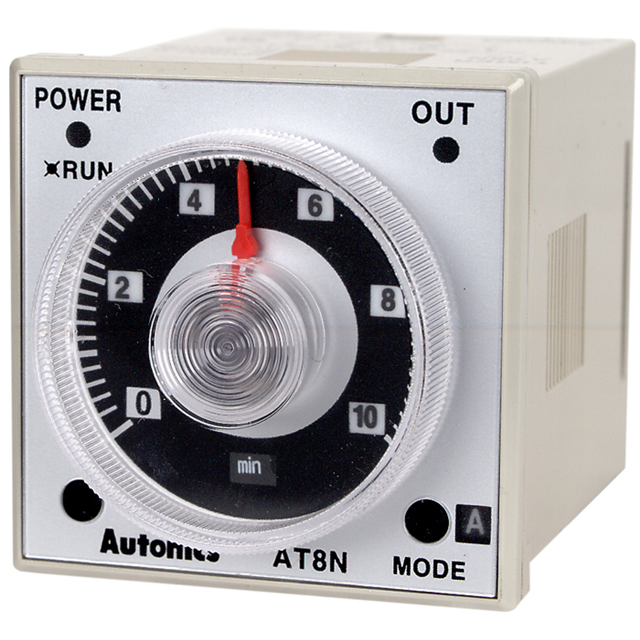

AT8N

Active

AUTONICS

RELAY TIME DELAY 100HR 5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT8N

Active

AUTONICS

RELAY TIME DELAY 100HR 5A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AT8N	- Series

Circuit	SPDT (1 Form C), DPDT (2 Form C)	SPST-NO (1 Form A), SPDT (1 Form C), 3PST-NO (3 Form A), DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 5 A	3 - 250 VAC
Delay Time	-	1 - 60 Sec
Delay Time	-	Fixed, Weekly, Yearly
Delay Time [Max]	100 Hrs	5 - 9990 Hrs
Delay Time [Min]	0.05 Sec	0.01 - 0.05 Sec
Display Characters - Height	-	0.315 in
Display Characters - Height	-	8 mm
Display Characters - Height	-	10 - 14 mm
Display Characters - Height	-	0.394 - 0.551 in
Display Type	-	LED - Red Characters
Features	-	Pulse Meter
Function	Programmable (Multi-Function)	On-Delay, Programmable (Multi-Function)
Load Current	-	15 - 75 A
Measuring Range	-	Multiple
Measuring Range	-	0 A
Measuring Range	-	20 mA
Measuring Type	-	Process
Mounting Type	-	Chassis Mount, DIN Rail, Socketable, Panel Mount, Chassis Mount or Panel Mount
Number of Characters Per Row	-	4 - 5
Output Type	-	AC, Zero Cross, Solid State (5), BCD Output, Relay (3), PV Output, Solid State (5), BCD Output, Solid State (5), PV Output
Output Type	-	1.81 mOhm
Package / Case	-	SSR with Integrated Heat Sink, Module
Panel Cutout Dimensions	-	45 - 92 mm
Panel Cutout Dimensions	-	22.2 - 68 mm
Relay Type	-	Solid State Relay, Mechanical Relay
Supplier Device Package	-	Module
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal), Screw Terminal
Timing Adjustment Method	Hand Dial	Hand Dial, DIP Switches, Up/Down Digit Keys
Timing Initiate Method	-	Input Voltage
Type	-	Process Meter
Voltage - Input	-	30 - 240 VAC
Voltage - Input	-	4 - 90 VAC
Voltage - Input	-	24 VAC
Voltage - Load	-	24 - 48 V
Voltage - Load	-	240 - 480 V
Voltage - Supply	-	12 - 24 VDC
Voltage - Supply	-	Loop Power
Voltage - Supply [Max]	240 VDC, 240 VAC	24 - 240 VAC
Voltage - Supply [Min]	100 VAC, 24 V	12 - 110 VAC

- Series

RELAY TIME DELAY 6SEC 3A 250V

Part	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Delay Time	Timing Adjustment Method	Contact Rating @ Voltage	Function	Circuit	Mounting Type	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Output Type	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Type	Display Characters - Height [y]	Display Characters - Height [y]	Features	Measuring Range	Measuring Type	Number of Characters Per Row	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Delay Time [Max]	Delay Time [Min]	Relay Type	Timing Initiate Method	Delay Time
AUTONICS ATE-6S	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	6 Sec	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)
AUTONICS SRH2-4440	Screw Terminal							3PST-NO (3 Form A)	Chassis Mount, DIN Rail	40 A	48 V	480 V	SSR with Integrated Heat Sink	AC, Zero Cross	Module	240 VAC	90 VAC
AUTONICS MP5Y-41	Screw Terminal	240 VAC	100 VAC											Solid State (5)				Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	68 mm	31.5 mm	LED - Red Characters
AUTONICS AT8N	Plug In, 8 Pin (Octal)	240 VDC, 240 VAC	24 V, 100 VAC		Hand Dial	5 A, 250 VAC	Programmable (Multi-Function)	DPDT (2 Form C), SPDT (1 Form C)																				100 Hrs	0.05 Sec
AUTONICS FS5E-I4	Plug In, 8 Pin (Octal)	240 VAC	100 VAC		DIP Switches	3 A, 250 VAC	On-Delay		Socketable																			5 Sec	0.05 Sec	Solid State Relay	Input Voltage
AUTONICS ATE-60M	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	60 Min	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)																								Fixed
AUTONICS MP5S-4N	Screw Terminal	240 VAC	100 VAC															Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	45.5 mm	45.5 mm	LED - Red Characters
AUTONICS MP5Y-43	Screw Terminal	240 VAC	100 VAC											BCD Output				Process Meter	0.315 in	8 mm	Pulse Meter	Multiple	Process	5	68 mm	31.5 mm	LED - Red Characters
AUTONICS LE7M-2	Screw Terminal	240 VAC	100 VAC		Up/Down Digit Keys	10 A, 250 VAC	Programmable (Multi-Function)		Chassis Mount, Panel Mount																					Mechanical Relay	Input Voltage	Weekly, Yearly
AUTONICS ATE-12H	Plug In, 8 Pin (Octal)	220 VAC	110 VAC	12 Hrs	Hand Dial	3 A, 250 VAC	On-Delay	SPDT (1 Form C), SPST-NO (1 Form A)																								Fixed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.00

Description

General part information

- Series

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C), DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 5A @ 250VAC Panel Mount
