CDCLVD1213EVM
ActiveEVAL MODULE FOR CDCLVD1213
Deep-Dive with AI
Search across all available documentation for this part.

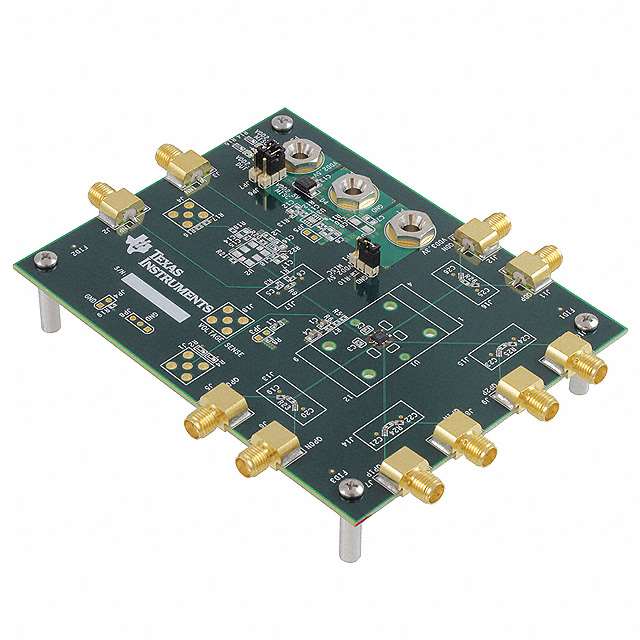

CDCLVD1213EVM
ActiveEVAL MODULE FOR CDCLVD1213
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CDCLVD1213EVM | CDCLVD1213 Series |
|---|---|---|
| Differential - Input:Output | - | True |
| Differential - Input:Output | - | True |
| Embedded | False | False |
| Frequency - Max | - | 800 MHz |
| Function | Clock Buffer | Clock Buffer |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Output | - | LVDS |
| Package / Case | - | 16-VFQFN Exposed Pad |
| Ratio - Input:Output | - | 4 |
| Ratio - Input:Output | - | 1 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-VQFN (3x3) |
| Type | Timing | Fanout Buffer (Distribution), Divider, Timing |
| Utilized IC / Part | CDCLVD1213 | CDCLVD1213 |
| Voltage - Supply | - | 2.375 V |
| Voltage - Supply | - | 2.625 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
CDCLVD1213 Series
Low jitter, 1:4 universal-to-LVDS buffer with selectable output divider
| Part | Supplier Device Package | Output | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Type | Package / Case | Frequency - Max [Max] | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Number of Circuits | Mounting Type | Supplied Contents | Utilized IC / Part | Function | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDCLVD1213RGTR | 16-VQFN (3x3) | LVDS | -40 °C | 85 °C | 2.375 V | 2.625 V | Fanout Buffer (Distribution), Divider | 16-VFQFN Exposed Pad | 800 MHz | 4 | 1 | 1 | Surface Mount | ||||||
Texas Instruments CDCLVD1213RGTT | 16-VQFN (3x3) | LVDS | -40 °C | 85 °C | 2.375 V | 2.625 V | Fanout Buffer (Distribution), Divider | 16-VFQFN Exposed Pad | 800 MHz | 4 | 1 | 1 | Surface Mount | ||||||
Texas Instruments CDCLVD1213EVM | Timing | Board(s) | CDCLVD1213 | Clock Buffer |
Description
General part information
CDCLVD1213 Series
The CDCLVD1213 clock buffer distributes an input clock to 4 pairs of differential LVDS clock outputs with low additive jitter for clock distribution. The input can either be LVDS, LVPECL, or CML.
The CDCLVD1213 contains a high performance divider for one output (QD) which can divide the input clock signal by a factor of 1, 2, or 4.
The CDCLVD1213 is specifically designed for driving 50-Ω transmission lines. The part supports a fail-safe function. The device incorporates an input hysteresis which prevents random oscillation of the outputs in the absence of an input signal.
Documents
Technical documentation and resources
