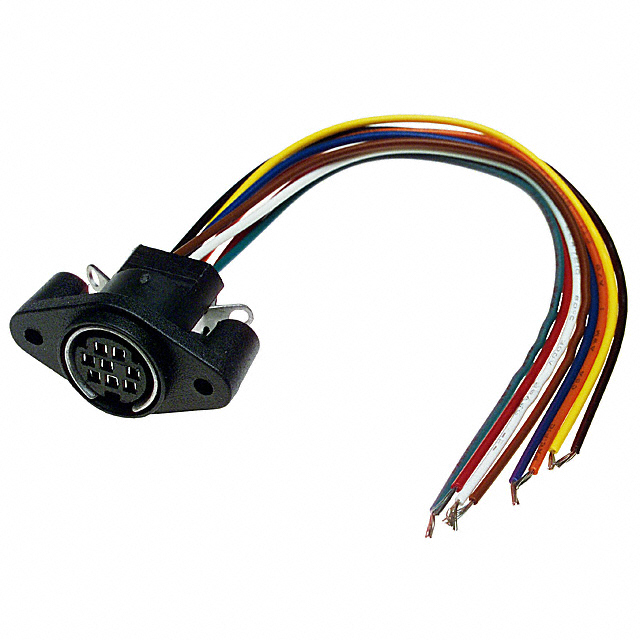

MD-80PL100

Active

CUI Devices

CABLE ASSEMBLY CIRCULAR 0.1M 26AWG MINI CIRCULAR DIN 8 STRAIGHT

Search across all available documentation for this part.

Active

CUI Devices

CABLE ASSEMBLY CIRCULAR 0.1M 26AWG MINI CIRCULAR DIN 8 STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	MD-80PL100

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Mini DIN
Shielding	Unshielded
Termination	Wire Leads
Voltage Rating	100 VAC, 12 V

Part	Shell Material	Termination	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Shielding	Fastening Type	Material Flammability Rating	Primary Material	Shell Size - Insert	Mounting Feature	Orientation	Features	Connector Type	Contact Material	Shell Finish	Insert Material	Contact Finish - Mating	Mounting Type
CUI Devices MD-80PL100	Polybutylene Terephthalate (PBT)	Wire Leads	8	85 °C	-40 °C	12 V 100 VAC	Black	Unshielded	Push-Pull	UL94 V-0	Plastic	Mini DIN	Flange	Keyed	Ground	Receptacle Female Sockets	Phosphor Bronze
CUI Devices MD-80SP	Brass	Solder	8	80 C	5 °C	12 V 100 VAC	Silver	Unshielded	Push-Pull	UL94 V-0	Metal	Mini DIN	Flange	Keyed		Receptacle Female Sockets	Phosphor Bronze	Nickel	Polyamide (PA6) Nylon 6 Glass Filled	Silver
CUI Devices MD-80J	Copper	Crimp Pin Adapter Available Solder	8	105 ░C	-20 C	12 V 100 VAC	Black	Unshielded	Push-Pull	UL94 V-0	Metal	Mini DIN		Keyed	Ground Strain Relief	Receptacle Female Sockets	Brass	Black Nickel	Polyamide (PA6) Nylon 6	Silver	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Wire Leads
