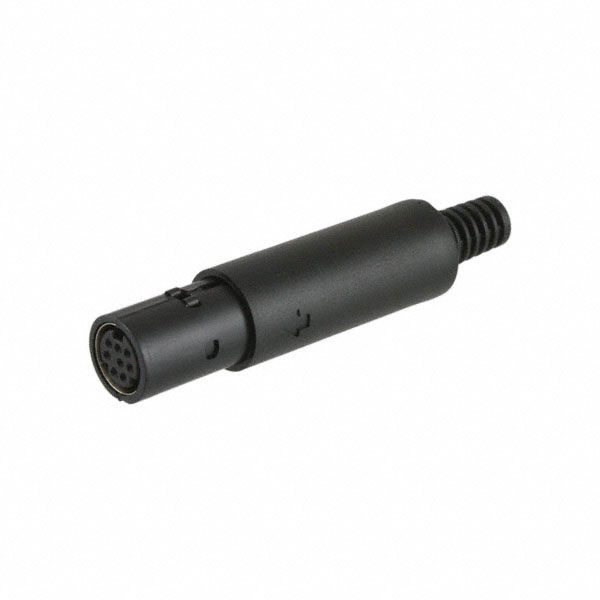

MD-80J
ObsoleteCUI Devices
CONN RCPT FMALE MINI DIN 8P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
MD-80J
ObsoleteCUI Devices
CONN RCPT FMALE MINI DIN 8P SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MD-80J |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Brass |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Ground |
| Insert Material | Polyamide (PA6), Nylon 6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black Nickel |
| Shell Material | Copper |
| Shell Size - Insert | Mini DIN |
| Shielding | Unshielded |
| Termination | Solder, Crimp Pin Adapter Available |
| Voltage Rating | 100 VAC, 12 V |
MD-80 Series
| Part | Shell Material | Termination | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Color | Shielding | Fastening Type | Material Flammability Rating | Primary Material | Shell Size - Insert | Mounting Feature | Orientation | Features | Connector Type | Contact Material | Shell Finish | Insert Material | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Polybutylene Terephthalate (PBT) | Wire Leads | 8 | 85 °C | -40 °C | 12 V 100 VAC | Black | Unshielded | Push-Pull | UL94 V-0 | Plastic | Mini DIN | Flange | Keyed | Ground | Receptacle Female Sockets | Phosphor Bronze | ||||
CUI Devices | Brass | Solder | 8 | 80 C | 5 °C | 12 V 100 VAC | Silver | Unshielded | Push-Pull | UL94 V-0 | Metal | Mini DIN | Flange | Keyed | Receptacle Female Sockets | Phosphor Bronze | Nickel | Polyamide (PA6) Nylon 6 Glass Filled | Silver | ||
CUI Devices | Copper | Crimp Pin Adapter Available Solder | 8 | 105 ░C | -20 C | 12 V 100 VAC | Black | Unshielded | Push-Pull | UL94 V-0 | Metal | Mini DIN | Keyed | Ground Strain Relief | Receptacle Female Sockets | Brass | Black Nickel | Polyamide (PA6) Nylon 6 | Silver | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MD-80 Series
8 Position Circular Connector Receptacle, Female Sockets Solder, Crimp Pin Adapter Available
