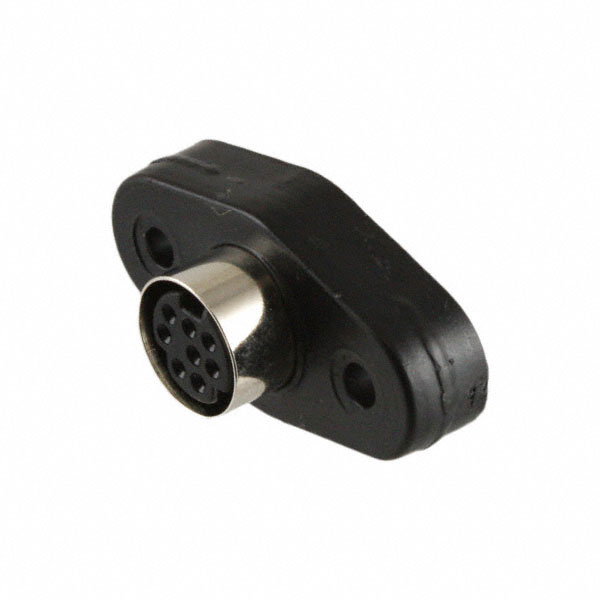

MD-80SP

Obsolete

CUI Devices

CONN RCPT FMALE MINI DIN 8P SLDR

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN RCPT FMALE MINI DIN 8P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MD-80SP

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Insert Material	Polyamide (PA6), Nylon 6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	5 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	Mini DIN
Shielding	Unshielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Shell Material	Termination	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Shielding	Fastening Type	Material Flammability Rating	Primary Material	Shell Size - Insert	Mounting Feature	Orientation	Features	Connector Type	Contact Material	Shell Finish	Insert Material	Contact Finish - Mating	Mounting Type
CUI Devices MD-80PL100	Polybutylene Terephthalate (PBT)	Wire Leads	8	85 °C	-40 °C	12 V 100 VAC	Black	Unshielded	Push-Pull	UL94 V-0	Plastic	Mini DIN	Flange	Keyed	Ground	Receptacle Female Sockets	Phosphor Bronze
CUI Devices MD-80SP	Brass	Solder	8	80 C	5 °C	12 V 100 VAC	Silver	Unshielded	Push-Pull	UL94 V-0	Metal	Mini DIN	Flange	Keyed		Receptacle Female Sockets	Phosphor Bronze	Nickel	Polyamide (PA6) Nylon 6 Glass Filled	Silver
CUI Devices MD-80J	Copper	Crimp Pin Adapter Available Solder	8	105 ░C	-20 C	12 V 100 VAC	Black	Unshielded	Push-Pull	UL94 V-0	Metal	Mini DIN		Keyed	Ground Strain Relief	Receptacle Female Sockets	Brass	Black Nickel	Polyamide (PA6) Nylon 6	Silver	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
