627-W15-222-012

Active

EDAC Inc.

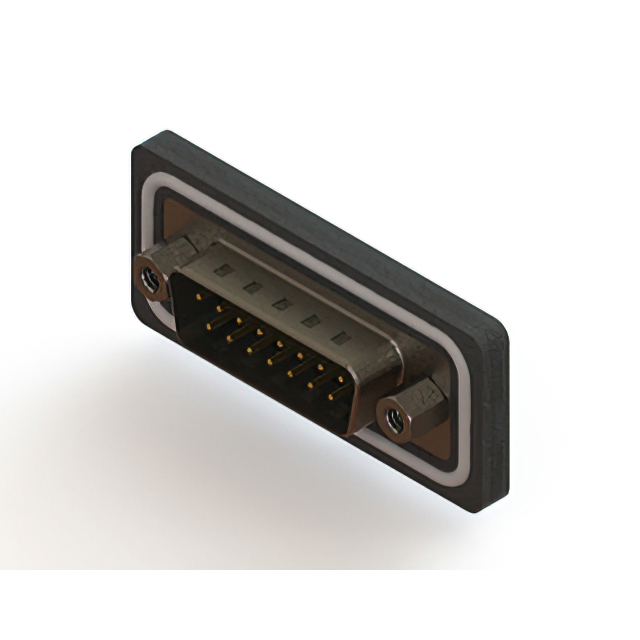

D SUB CONNECTOR, STANDARD, PLUG, 627W SERIES, 15 CONTACTS, DA, SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

627-W15-222-012

Active

EDAC Inc.

D SUB CONNECTOR, STANDARD, PLUG, 627W SERIES, 15 CONTACTS, DA, SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-W15-222-012

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2

627-W15 Series

Part	Flange Feature	Shell Size, Connector Layout	Ingress Protection	Material Flammability Rating	Contact Finish Thickness	Number of Positions	Contact Type	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Number of Rows	Current Rating (Amps)	Contact Material	Color	Contact Finish	Dielectric Material	Features	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-W15-222-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Free Hanging (In-Line)
EDAC Inc. 627-W15-220-013	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Grounding Indents	Panel Mount Through Hole	Solder
EDAC Inc. 627-W15-221-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Panel Mount Through Hole	Solder
EDAC Inc. 627-W15-620-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0		15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Panel Mount Through Hole	Solder	0.76 Ám	30 Áin
EDAC Inc. 627-W15-320-013	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0		15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Grounding Indents	Panel Mount Through Hole	Solder	0.38 µm	15 µin
EDAC Inc. 627-W15-320-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0		15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Panel Mount Through Hole	Solder	0.38 µm	15 µin
