627-W15-320-012
ActiveEDAC Inc.
627W (WATERPROOF) SERIES VERTICA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-W15-320-012 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Board Side, 4-40 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
627-W15 Series
| Part | Flange Feature | Shell Size, Connector Layout | Ingress Protection | Material Flammability Rating | Contact Finish Thickness | Number of Positions | Contact Type | Connector Style | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Number of Rows | Current Rating (Amps) | Contact Material | Color | Contact Finish | Dielectric Material | Features | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Board Side | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | 15 | Signal and Power | D-Sub | Male Pins Plug | -25 °C | 85 °C | Nickel Plated Steel | 2 | 5 A | Copper Alloy | Black | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Grounding Indents | Free Hanging (In-Line) | |||
EDAC Inc. | 4-40 Board Side | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | 15 | Signal and Power | D-Sub | Male Pins Plug | -25 °C | 85 °C | Nickel Plated Steel | 2 | 5 A | Copper Alloy | Black | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Board Lock Grounding Indents | Panel Mount Through Hole | Solder | ||
EDAC Inc. | 4-40 Board Side | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | 15 | Signal and Power | D-Sub | Male Pins Plug | -25 °C | 85 °C | Nickel Plated Steel | 2 | 5 A | Copper Alloy | Black | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Grounding Indents | Panel Mount Through Hole | Solder | ||
EDAC Inc. | 4-40 Board Side | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | 15 | Signal and Power | D-Sub | Male Pins Plug | -25 °C | 85 °C | Nickel Plated Steel | 2 | 5 A | Copper Alloy | Black | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Grounding Indents | Panel Mount Through Hole | Solder | 0.76 Ám | 30 Áin | |
EDAC Inc. | 4-40 Board Side | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | 15 | Signal and Power | D-Sub | Male Pins Plug | -25 °C | 85 °C | Nickel Plated Steel | 2 | 5 A | Copper Alloy | Black | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Board Lock Grounding Indents | Panel Mount Through Hole | Solder | 0.38 µm | 15 µin | |
EDAC Inc. | 4-40 Board Side | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | 15 | Signal and Power | D-Sub | Male Pins Plug | -25 °C | 85 °C | Nickel Plated Steel | 2 | 5 A | Copper Alloy | Black | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Grounding Indents | Panel Mount Through Hole | Solder | 0.38 µm | 15 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 300 | $ 12.36 | |
Description
General part information
627-W15 Series

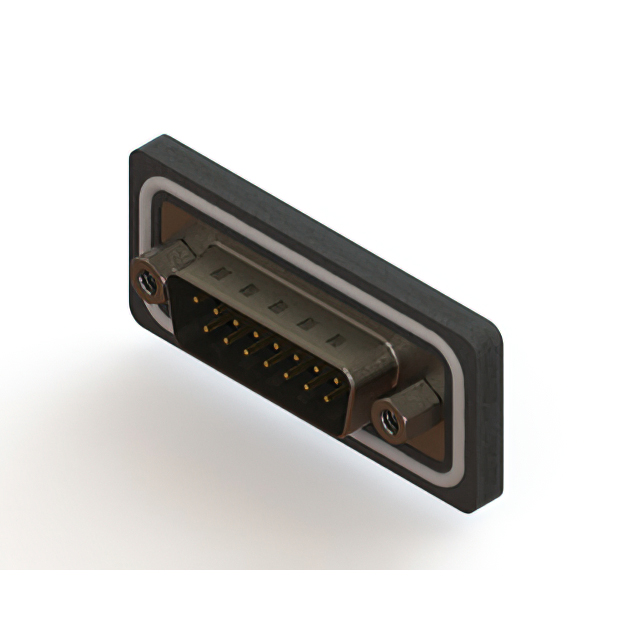

15 Position D-Sub Plug, Male Pins Connector
