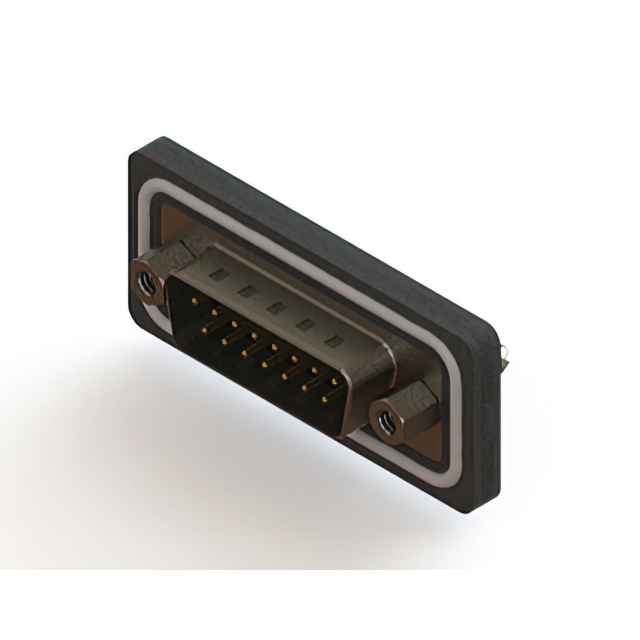

627-W15-320-013

Active

EDAC Inc.

627W (WATERPROOF) SERIES VERTICA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-W15-320-013

Active

EDAC Inc.

627W (WATERPROOF) SERIES VERTICA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-W15-320-013

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

627-W15 Series

Part	Flange Feature	Shell Size, Connector Layout	Ingress Protection	Material Flammability Rating	Contact Finish Thickness	Number of Positions	Contact Type	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Number of Rows	Current Rating (Amps)	Contact Material	Color	Contact Finish	Dielectric Material	Features	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-W15-222-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Free Hanging (In-Line)
EDAC Inc. 627-W15-220-013	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Grounding Indents	Panel Mount Through Hole	Solder
EDAC Inc. 627-W15-221-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0	Flash	15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Panel Mount Through Hole	Solder
EDAC Inc. 627-W15-620-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0		15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Panel Mount Through Hole	Solder	0.76 Ám	30 Áin
EDAC Inc. 627-W15-320-013	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0		15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Grounding Indents	Panel Mount Through Hole	Solder	0.38 µm	15 µin
EDAC Inc. 627-W15-320-012	4-40 Board Side	2	IP67 - Dust Tight Waterproof	UL94 V-0		15	Signal and Power	D-Sub	Male Pins Plug	-25 °C	85 °C	Nickel Plated Steel	2	5 A	Copper Alloy	Black	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Panel Mount Through Hole	Solder	0.38 µm	15 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 12.88

Description

General part information

627-W15 Series

15 Position D-Sub Plug, Male Pins Connector
