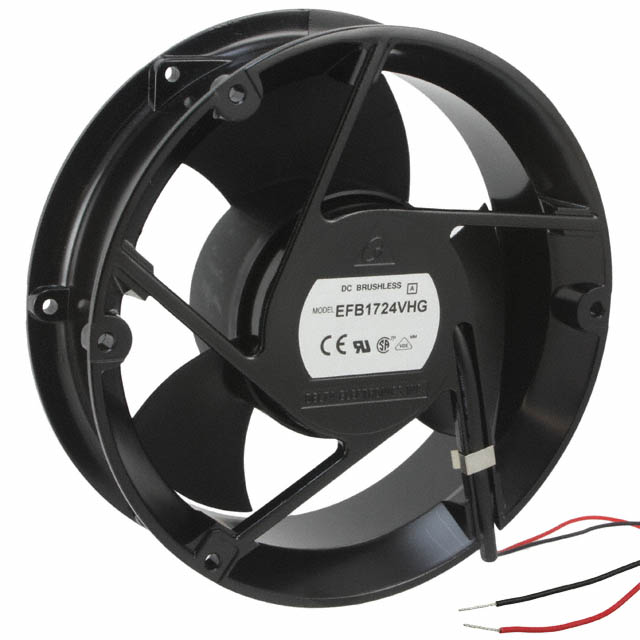

EFB1724VHG-T500
ActiveDelta Electronics
FAN TUBEAXIAL 24VDC ROUND - 172MM DIA BALL 302.3 CFM(8.46M³/MIN) 2 WIRE LEADS
Deep-Dive with AI
Search across all available documentation for this part.
EFB1724VHG-T500
ActiveDelta Electronics
FAN TUBEAXIAL 24VDC ROUND - 172MM DIA BALL 302.3 CFM(8.46M³/MIN) 2 WIRE LEADS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFB1724VHG-T500 |
|---|---|
| Air Flow | 302.3 CFM |
| Air Flow | 8.46 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 970 mA |
| Fan Type | Tubeaxial |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 57 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 23.28 W |
| RPM | 4000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 172 mm |
| Static Pressure | 233.4 Pa |
| Static Pressure | 0.937 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 861.8 g |
| Weight | 1.9 lbs |
| Width [y] | 2 " |
EFB1724 Series
| Part | Static Pressure | Static Pressure | Features | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Fan Type | Termination | RPM | Material - Frame | Current Rating (Amps) | Size / Dimension | Size / Dimension [diameter] | Voltage Range [Min] | Voltage Range [Max] | Weight | Weight | Approval Agency | Voltage - Rated | Lifetime @ Temp. | Width [y] | Power (Watts) | Material - Blade | Bearing Type | Noise | Air Flow | Air Flow | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 116.8 Pa | 0.469 in H2O | Locked Rotor Sensor | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 3 Wire Leads | 2800 RPM | Aluminum | 390 mA | Round | 172 mm | 12 VDC | 28 VDC | 861.8 g | 1.9 lbs | CE CSA UL VDE | 24 VDC | 80000 Hrs | 2 " | 9.36 W | Plastic | Ball | 48 dB | 210.1 CFM | 5.88 m³/min | |
Delta Electronics | 233.4 Pa | 0.937 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 2 Wire Leads | 4000 RPM | Aluminum | 970 mA | Round | 172 mm | 12 VDC | 28 VDC | 861.8 g | 1.9 lbs | CE CSA UL VDE | 24 VDC | 80000 Hrs | 2 " | 23.28 W | Plastic | Ball | 57 dB | 302.3 CFM | 8.46 m³/min | ||
Delta Electronics | 233.4 Pa | 0.937 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 2 Wire Leads | 4000 RPM | Aluminum | 970 mA | Round | 172 mm | 12 VDC | 28 VDC | 861.8 g | 1.9 lbs | CE CSA UL VDE | 24 VDC | 80000 Hrs | 2 " | 23.28 W | Plastic | Ball | 57 dB | 302.3 CFM | 8.46 m³/min | IP55 - Dust Protected Water Resistant | |
Delta Electronics | 171.6 Pa | 0.689 in H2O | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 2 Wire Leads | 3350 RPM | Aluminum | 0.56 A | Round | 172 mm | 12 VDC | 28 VDC | 861.8 g | 1.9 lbs | CE CSA UL VDE | 24 VDC | 80000 Hrs | 2 " | 13.44 W | Plastic | Ball | 53 dB | 251.8 CFM | 7.05 m³/min | ||
Delta Electronics | 269.8 Pa | 1.083 in H2O | Locked Rotor Protection Speed Sensor (Tach) | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 3 Wire Leads | 4300 RPM | Aluminum | 1.17 A | Round | 172 mm | 12 VDC | 28 VDC | 861.8 g | 1.9 lbs | CE CSA UL VDE | 24 VDC | 80000 Hrs | 2 " | 28.08 W | Plastic | Ball | 59 dB(A) | 325 CFM | 9.1 m³/min | |
Delta Electronics | 171.6 Pa | 0.689 in H2O | Locked Rotor Protection Speed Sensor (Tach) | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 3 Wire Leads | 3350 RPM | Aluminum | 0.56 A | Round | 172 mm | 12 VDC | 28 VDC | 861.8 g | 1.9 lbs | CE CSA UL VDE | 24 VDC | 80000 Hrs | 2 " | 13.44 W | Plastic | Ball | 53 dB | 251.8 CFM | 7.05 m³/min | |
Delta Electronics | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 2 Wire Leads | 3700 RPM | Aluminum | 770 mA | Round | 172 mm | 12 VDC | 28 VDC | 861.8 g | 1.9 lbs | CE CSA UL VDE | 24 VDC | 80000 Hrs | 2 " | 18.48 W | Plastic | Ball | 55 dB | 279.7 CFM | 7.83 m³/min |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EFB1724 Series
Fan Tubeaxial 24VDC Round - 172mm Dia Ball 302.3 CFM (8.46m³/min) 2 Wire Leads
