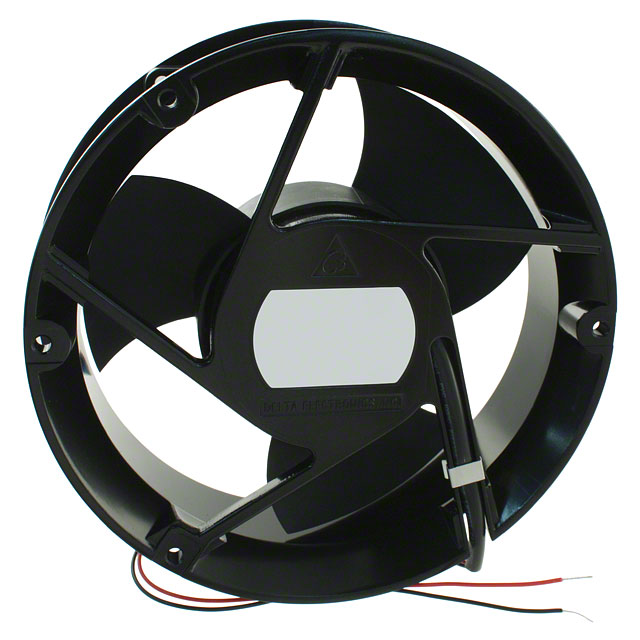

EFB1724HHG - EFB1724HHG

EFB1724HHG

Obsolete
Delta Electronics

FAN AXIAL 172X50.8MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE CertFans, Blowers CSA Cert+2
EFB1724HHG - EFB1724HHG

EFB1724HHG

Obsolete
Delta Electronics

FAN AXIAL 172X50.8MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans VDE CertFans, Blowers CSA Cert+2

Technical Specifications

Parameters and characteristics for this part

SpecificationEFB1724HHG
Air Flow279.7 CFM
Air Flow7.83 m³/min
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Current Rating (Amps)770 mA
Fan TypeTubeaxial
Lifetime @ Temp.80000 Hrs
Material - BladePlastic
Material - FrameAluminum
Noise55 dB
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)18.48 W
RPM3700 RPM
Size / DimensionRound
Size / Dimension [diameter]172 mm
Termination2 Wire Leads
Voltage - Rated24 VDC
Voltage Range [Max]28 VDC
Voltage Range [Min]12 VDC
Weight861.8 g
Weight1.9 lbs
Width [y]2 "

EFB1724 Series

PartStatic PressureStatic PressureFeaturesOperating Temperature [Max]Operating Temperature [Max]Operating Temperature [Min]Operating Temperature [Min]Fan TypeTerminationRPMMaterial - FrameCurrent Rating (Amps)Size / DimensionSize / Dimension [diameter]Voltage Range [Min]Voltage Range [Max]WeightWeightApproval AgencyVoltage - RatedLifetime @ Temp.Width [y]Power (Watts)Material - BladeBearing TypeNoiseAir FlowAir FlowIngress Protection
Delta Electronics
EFB1724LG-R00
116.8 Pa
0.469 in H2O
Locked Rotor Sensor
70 °C
70 °C
-10 °C
-10 °C
Tubeaxial
3 Wire Leads
2800 RPM
Aluminum
390 mA
Round
172 mm
12 VDC
28 VDC
861.8 g
1.9 lbs
CE
CSA
UL
VDE
24 VDC
80000 Hrs
2 "
9.36 W
Plastic
Ball
48 dB
210.1 CFM
5.88 m³/min
Delta Electronics
EFB1724VHG
233.4 Pa
0.937 in H2O
70 °C
70 °C
-10 °C
-10 °C
Tubeaxial
2 Wire Leads
4000 RPM
Aluminum
970 mA
Round
172 mm
12 VDC
28 VDC
861.8 g
1.9 lbs
CE
CSA
UL
VDE
24 VDC
80000 Hrs
2 "
23.28 W
Plastic
Ball
57 dB
302.3 CFM
8.46 m³/min
Delta Electronics
EFB1724VHG-T500
233.4 Pa
0.937 in H2O
70 °C
70 °C
-10 °C
-10 °C
Tubeaxial
2 Wire Leads
4000 RPM
Aluminum
970 mA
Round
172 mm
12 VDC
28 VDC
861.8 g
1.9 lbs
CE
CSA
UL
VDE
24 VDC
80000 Hrs
2 "
23.28 W
Plastic
Ball
57 dB
302.3 CFM
8.46 m³/min
IP55 - Dust Protected
Water Resistant
Delta Electronics
EFB1724HG
171.6 Pa
0.689 in H2O
70 °C
70 °C
-10 °C
-10 °C
Tubeaxial
2 Wire Leads
3350 RPM
Aluminum
0.56 A
Round
172 mm
12 VDC
28 VDC
861.8 g
1.9 lbs
CE
CSA
UL
VDE
24 VDC
80000 Hrs
2 "
13.44 W
Plastic
Ball
53 dB
251.8 CFM
7.05 m³/min
Delta Electronics
EFB1724SHG-F00
269.8 Pa
1.083 in H2O
Locked Rotor Protection
Speed Sensor (Tach)
70 °C
70 °C
-10 °C
-10 °C
Tubeaxial
3 Wire Leads
4300 RPM
Aluminum
1.17 A
Round
172 mm
12 VDC
28 VDC
861.8 g
1.9 lbs
CE
CSA
UL
VDE
24 VDC
80000 Hrs
2 "
28.08 W
Plastic
Ball
59 dB(A)
325 CFM
9.1 m³/min
Delta Electronics
EFB1724HG-F00
171.6 Pa
0.689 in H2O
Locked Rotor Protection
Speed Sensor (Tach)
70 °C
70 °C
-10 °C
-10 °C
Tubeaxial
3 Wire Leads
3350 RPM
Aluminum
0.56 A
Round
172 mm
12 VDC
28 VDC
861.8 g
1.9 lbs
CE
CSA
UL
VDE
24 VDC
80000 Hrs
2 "
13.44 W
Plastic
Ball
53 dB
251.8 CFM
7.05 m³/min
Delta Electronics
EFB1724HHG
70 °C
70 °C
-10 °C
-10 °C
Tubeaxial
2 Wire Leads
3700 RPM
Aluminum
770 mA
Round
172 mm
12 VDC
28 VDC
861.8 g
1.9 lbs
CE
CSA
UL
VDE
24 VDC
80000 Hrs
2 "
18.48 W
Plastic
Ball
55 dB
279.7 CFM
7.83 m³/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

EFB1724 Series

Fan Tubeaxial 24VDC Round - 172mm Dia Ball 279.7 CFM (7.83m³/min) 2 Wire Leads
