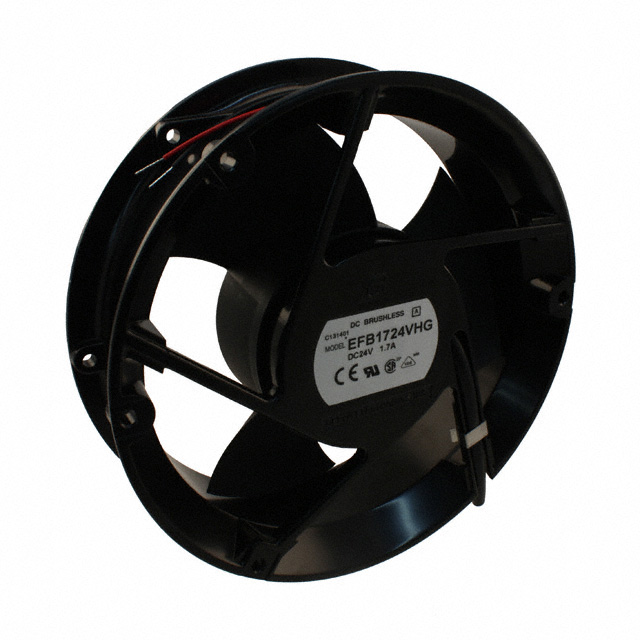

EFB1724VHG

Active

Delta Electronics

FAN AXIAL 172X50.8MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Electric - Component UL Cert +2

EFB1724VHG

Active

Delta Electronics

FAN AXIAL 172X50.8MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB1724VHG

Air Flow	302.3 CFM
Air Flow	8.46 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	970 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	57 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	23.28 W
RPM	4000 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	233.4 Pa
Static Pressure	0.937 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Weight	861.8 g
Weight	1.9 lbs
Width [y]	2 "

EFB1724 Series

Part	Static Pressure	Static Pressure	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Termination	RPM	Material - Frame	Current Rating (Amps)	Size / Dimension	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Approval Agency	Voltage - Rated	Lifetime @ Temp.	Width [y]	Power (Watts)	Material - Blade	Bearing Type	Noise	Air Flow	Air Flow	Ingress Protection
Delta Electronics EFB1724LG-R00	116.8 Pa	0.469 in H2O	Locked Rotor Sensor	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	3 Wire Leads	2800 RPM	Aluminum	390 mA	Round	172 mm	12 VDC	28 VDC	861.8 g	1.9 lbs	CE CSA UL VDE	24 VDC	80000 Hrs	2 "	9.36 W	Plastic	Ball	48 dB	210.1 CFM	5.88 m³/min
Delta Electronics EFB1724VHG	233.4 Pa	0.937 in H2O		70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2 Wire Leads	4000 RPM	Aluminum	970 mA	Round	172 mm	12 VDC	28 VDC	861.8 g	1.9 lbs	CE CSA UL VDE	24 VDC	80000 Hrs	2 "	23.28 W	Plastic	Ball	57 dB	302.3 CFM	8.46 m³/min
Delta Electronics EFB1724VHG-T500	233.4 Pa	0.937 in H2O		70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2 Wire Leads	4000 RPM	Aluminum	970 mA	Round	172 mm	12 VDC	28 VDC	861.8 g	1.9 lbs	CE CSA UL VDE	24 VDC	80000 Hrs	2 "	23.28 W	Plastic	Ball	57 dB	302.3 CFM	8.46 m³/min	IP55 - Dust Protected Water Resistant
Delta Electronics EFB1724HG	171.6 Pa	0.689 in H2O		70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2 Wire Leads	3350 RPM	Aluminum	0.56 A	Round	172 mm	12 VDC	28 VDC	861.8 g	1.9 lbs	CE CSA UL VDE	24 VDC	80000 Hrs	2 "	13.44 W	Plastic	Ball	53 dB	251.8 CFM	7.05 m³/min
Delta Electronics EFB1724SHG-F00	269.8 Pa	1.083 in H2O	Locked Rotor Protection Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	3 Wire Leads	4300 RPM	Aluminum	1.17 A	Round	172 mm	12 VDC	28 VDC	861.8 g	1.9 lbs	CE CSA UL VDE	24 VDC	80000 Hrs	2 "	28.08 W	Plastic	Ball	59 dB(A)	325 CFM	9.1 m³/min
Delta Electronics EFB1724HG-F00	171.6 Pa	0.689 in H2O	Locked Rotor Protection Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	3 Wire Leads	3350 RPM	Aluminum	0.56 A	Round	172 mm	12 VDC	28 VDC	861.8 g	1.9 lbs	CE CSA UL VDE	24 VDC	80000 Hrs	2 "	13.44 W	Plastic	Ball	53 dB	251.8 CFM	7.05 m³/min
Delta Electronics EFB1724HHG				70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2 Wire Leads	3700 RPM	Aluminum	770 mA	Round	172 mm	12 VDC	28 VDC	861.8 g	1.9 lbs	CE CSA UL VDE	24 VDC	80000 Hrs	2 "	18.48 W	Plastic	Ball	55 dB	279.7 CFM	7.83 m³/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 60.04
