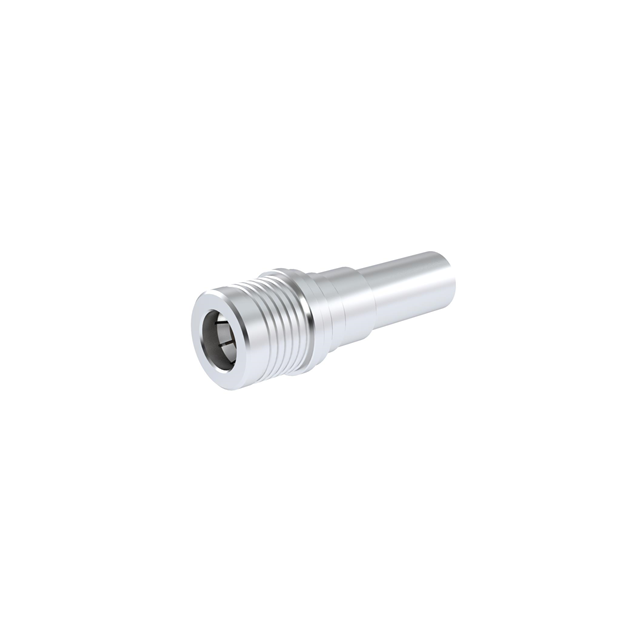

R123075000

Active

Radiall USA, Inc.

RF CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

R123075000

Active

Radiall USA, Inc.

RF CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R123075000

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

R12307 Series

Part	Cable Group	Dielectric Material	Shield Termination	Body Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Center Contact Material	Mounting Type	Impedance	Insertion Loss	Center Contact Plating	Voltage Rating	Frequency - Max [Max]	Body Finish	Contact Termination	Number of Ports	Cable Group
Radiall USA, Inc. R123076000W	223 400 RG-142	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123075000W	RG-58	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1	141
Radiall USA, Inc. R123075200	RG-58	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms		Gold	335 V	6000 MHz	White Bronze	Crimp	1	141
Radiall USA, Inc. R123076000	223 400 RG-142	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123071000W	316 RG-188	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	250 VDC	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123076310	LMR-240	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123075000	RG-58	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1	141
Radiall USA, Inc. R123071000	316 RG-188	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123072000	RG-316 Double Braid	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms		Gold	250 VDC	6000 MHz	White Bronze	Crimp	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.96
		10	$ 15.57
		25	$ 14.76
		50	$ 14.54
		100	$ 12.83
		300	$ 11.98
		500	$ 11.72

Description

General part information

R12307 Series

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
