R123076310

Active

Radiall USA, Inc.

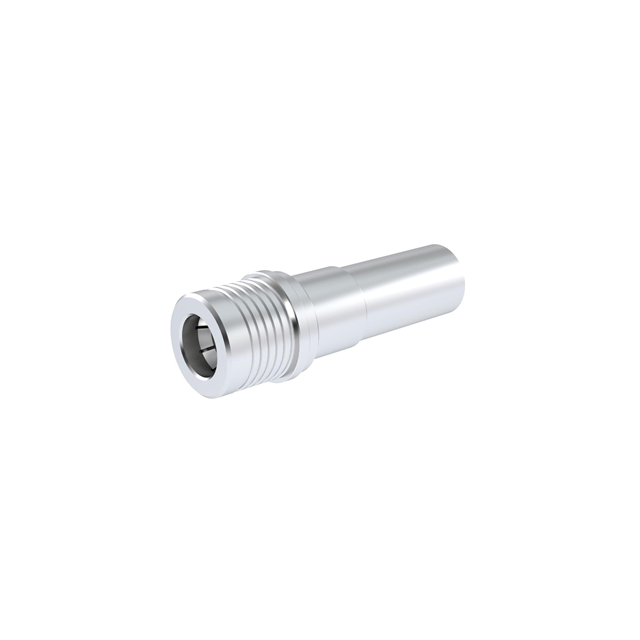

QMA / STRAIGHT PLUG FULL CRIMP T

Deep-Dive with AI

Search across all available documentation for this part.

R123076310

Active

Radiall USA, Inc.

QMA / STRAIGHT PLUG FULL CRIMP T

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R123076310

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

R12307 Series

Part	Cable Group	Dielectric Material	Shield Termination	Body Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Center Contact Material	Mounting Type	Impedance	Insertion Loss	Center Contact Plating	Voltage Rating	Frequency - Max [Max]	Body Finish	Contact Termination	Number of Ports	Cable Group
Radiall USA, Inc. R123076000W	223 400 RG-142	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123075000W	RG-58	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1	141
Radiall USA, Inc. R123075200	RG-58	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms		Gold	335 V	6000 MHz	White Bronze	Crimp	1	141
Radiall USA, Inc. R123076000	223 400 RG-142	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123071000W	316 RG-188	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	250 VDC	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123076310	LMR-240	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123075000	RG-58	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1	141
Radiall USA, Inc. R123071000	316 RG-188	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms	0.25 dB	Gold	335 V	6000 MHz	White Bronze	Crimp	1
Radiall USA, Inc. R123072000	RG-316 Double Braid	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Silver	-40 °C	105 ░C	Male Pin Plug	Snap-On	Brass	Free Hanging (In-Line)	50 Ohms		Gold	250 VDC	6000 MHz	White Bronze	Crimp	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.81
		10	$ 12.94
		25	$ 11.70
		50	$ 10.86
		100	$ 10.11
		250	$ 9.21
		500	$ 8.61
		1000	$ 8.07

Description

General part information

R12307 Series

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
