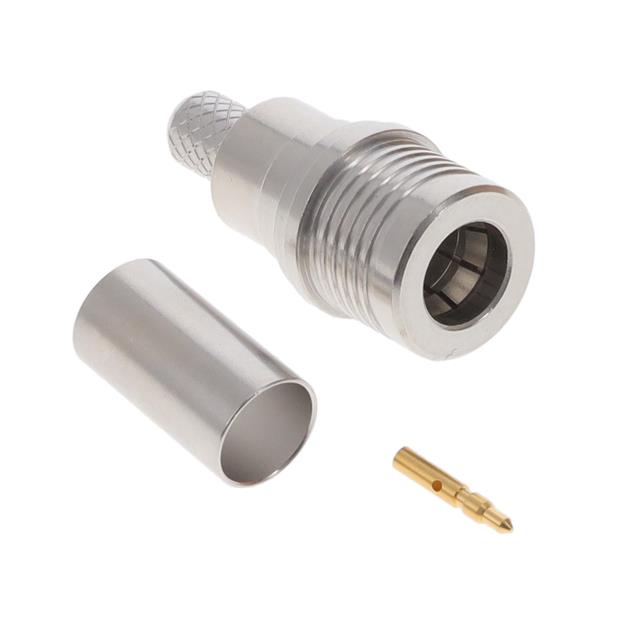

Specification	R123076000

Body Finish	White Bronze
Body Material	Brass
Cable Group	223, RG-142, 400
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	QMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Insertion Loss	0.25 dB
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

R12307 Series

Part	Body Material	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Insertion Loss	Dielectric Material	Voltage Rating	Center Contact Plating	Mating Cycles	Number of Ports	Cable Group	Fastening Type	Contact Termination	Housing Color	Shield Termination	Frequency - Max	Connector Type	Connector Style	Center Contact Material	Mounting Type	Impedance
Radiall USA, Inc. R123076000W	Brass	White Bronze	-40 °C	105 °C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	100 cycles	1	223 400 RG-142	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123075000W	Brass	White Bronze	-40 °C	105 °C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	100 cycles	1	141 RG-58	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123075200	Brass	White Bronze	-40 °C	105 °C		Polytetrafluoroethylene (PTFE)	335 V	Gold	100 cycles	1	141 RG-58	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123076000	Brass	White Bronze	-40 °C	105 °C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	100 cycles	1	223 400 RG-142	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123071000W	Brass	White Bronze	-40 °C	105 °C	0.25 dB	Polytetrafluoroethylene (PTFE)	250 V	Gold	100 cycles	1	316 RG-188	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123076310	Brass	White Bronze	-40 °C	105 °C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	100 cycles	1	LMR-240	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123075000	Brass	White Bronze	-40 °C	105 °C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	100 cycles	1	141 RG-58	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123071000	Brass	White Bronze	-40 °C	105 °C	0.25 dB	Polytetrafluoroethylene (PTFE)	335 V	Gold	100 cycles	1	316 RG-188	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
Radiall USA, Inc. R123072000	Brass	White Bronze	-40 °C	105 °C		Polytetrafluoroethylene (PTFE)	250 V	Gold	100 cycles	1	RG-316 Double Braid	Snap-On	Crimp	Silver	Crimp	6000 MHz	Male Pin Plug	QMA	Brass	Free Hanging (In-Line)	50 Ohm
