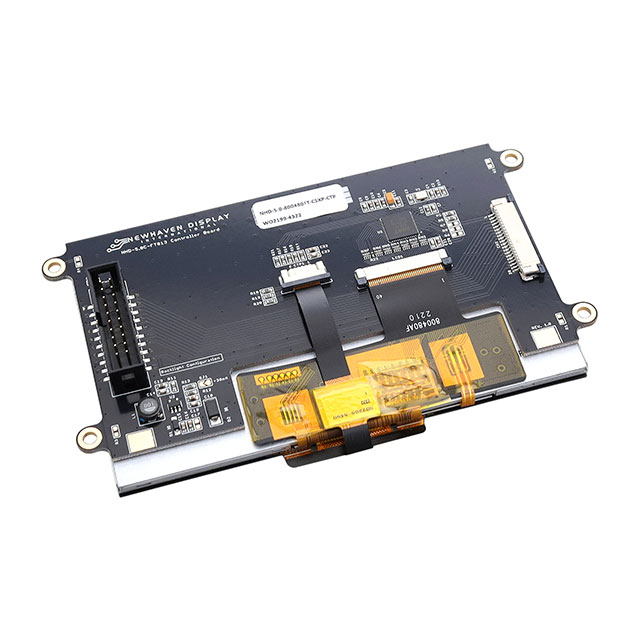

NHD-5.0-800480FT-CSXP-CTP

Active

Newhaven Display Intl

LCD DISPL TFT 5" SUNLT 800X480 C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-5.0-800480FT-CSXP-CTP

Active

Newhaven Display Intl

LCD DISPL TFT 5" SUNLT 800X480 C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-5.0-800480FT-CSXP-CTP

Backlight	LED
Controller Type	FT813
Diagonal Screen Size [custom]	127 mm
Diagonal Screen Size [custom]	5 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels	WVGA
Dot Pixels [x]	800
Dot Pixels [y]	480
Graphics Color	Black
Interface	SPI, 24-Bit (RGB)
Touchscreen	Capacitive
Viewing Area [x]	109 mm
Viewing Area [y]	65.8 mm

NHD-5.0 Series

Part	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [z]	Viewing Area [y]	Touchscreen	Backlight	Graphics Color	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Interface	Display Mode	Display Type	Controller Type	Viewing Area [x]	Interface	Dot Pixels
Newhaven Display Intl NHD-5.0-HDMI-N-RTXL	480	800	67.9 mm	111.1 mm	Non-Touch	LED - White	Blue Green Red	127 mm	5 in	HDMI	Transmissive	TFT - Color	TFP401A
Newhaven Display Intl NHD-5.0-800480TF-ATXL#-T	480	800		67.6 mm	Resistive	LED - White	Blue Green Red	127 mm	5 in	Parallel	Transmissive	TFT - Color		110.08 mm	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-800480TF-ATXI#	480	800		65.8 mm		LED - White	Blue Green Red	127 mm	5 in	Parallel	Transmissive	TFT - Color		109 mm	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-800480TF-ATXL#-CTP	480	800		65.8 mm	Capacitive	LED - White	Blue Green Red	127 mm	5 in	Parallel	Transmissive	TFT - Color	FT5310	109 mm	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-800480MB-ATXL-T	480	800		64.8 mm	Resistive	LED - White	Blue Green Red	127 mm	5 in	Parallel	Transmissive	TFT - Color		108 mm	24 Bit
Newhaven Display Intl NHD-5.0-800480TF-ASXN	480	800		64.8 mm		LED - White	Blue Green Red	127 mm	5 in	Parallel	Transmissive	TFT - Color	OTD7001A	108 mm	24 Bit
Newhaven Display Intl NHD-5.0-800480TF-ASXN-CTP	480	800		64.8 mm	Capacitive	LED - White	Blue Green Red	127 mm	5 in	Parallel	Transmissive	TFT - Color	OTD7001A	108 mm	24 Bit
Newhaven Display Intl NHD-5.0-800480TF-ATXL#	480	800		65.8 mm		LED - White	Blue Green Red	127 mm	5 in	Parallel	Transmissive	TFT - Color		109 mm	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-HDMI-N-RTXL-RTU	480	800		67.6 mm	Resistive	LED - White	Blue Green Red	127 mm	5 in	HDMI USB	Transmissive	TFT - Color	TFP401A	110.08 mm
Newhaven Display Intl NHD-5.0-800480AF-ASXP-CTP	480	800		65.8 mm	Capacitive	LED - White	Blue Green Red	127 mm	5 in	I2C Parallel	Transmissive	TFT - Color IPS (In-Plane Switching)	ST7262	109 mm	24 Bit	WVGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 122.76

Description

General part information

NHD-5.0 Series

Capacitive Graphic LCD Display Module Transmissive Black TFT - Color 24-Bit (RGB), SPI 5" (127.00mm) 800 x 480 (WVGA)
