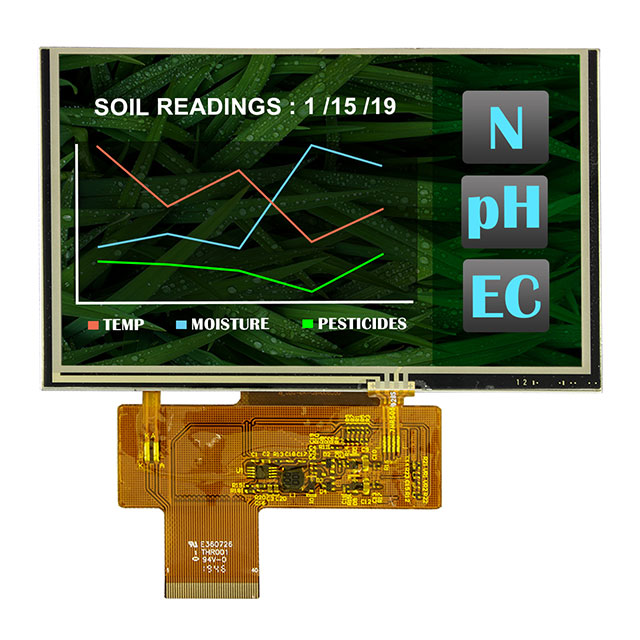

NHD-5.0-800480TF-ATXL#-T
ActiveNewhaven Display Intl
DISPLAY LCD TFT TOUCH 40PIN
Deep-Dive with AI
Search across all available documentation for this part.
NHD-5.0-800480TF-ATXL#-T
ActiveNewhaven Display Intl
DISPLAY LCD TFT TOUCH 40PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-5.0-800480TF-ATXL#-T |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size [custom] | 127 mm |
| Diagonal Screen Size [custom] | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels | WVGA |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Interface | 24 Bit |
| Touchscreen | Resistive |
| Viewing Area [x] | 110.08 mm |
| Viewing Area [y] | 67.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 65.10 | |
| 5 | $ 61.19 | |||
| 10 | $ 59.87 | |||
Description
General part information
NHD-5.0 Series
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 5" (127.00mm) 800 x 480 (WVGA)
