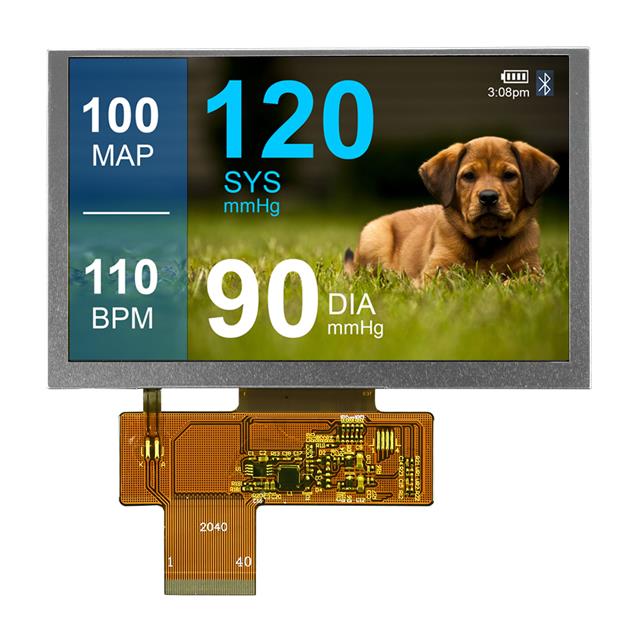

NHD-5.0-800480TF-ASXN
ObsoleteNewhaven Display Intl
5" SUNLIGHT READABLE TFT 840X480
Deep-Dive with AI
Search across all available documentation for this part.
NHD-5.0-800480TF-ASXN
ObsoleteNewhaven Display Intl
5" SUNLIGHT READABLE TFT 840X480
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-5.0-800480TF-ASXN |
|---|---|
| Backlight | LED - White |
| Controller Type | OTD7001A |
| Diagonal Screen Size [custom] | 127 mm |
| Diagonal Screen Size [custom] | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Interface | 24 Bit |
| Viewing Area [x] | 108 mm |
| Viewing Area [y] | 64.8 mm |
NHD-5.0 Series
| Part | Dot Pixels [y] | Dot Pixels [x] | Viewing Area [z] | Viewing Area [y] | Touchscreen | Backlight | Graphics Color | Diagonal Screen Size [custom] | Diagonal Screen Size [custom] | Interface | Display Mode | Display Type | Controller Type | Viewing Area [x] | Interface | Dot Pixels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Newhaven Display Intl | 480 | 800 | 67.9 mm | 111.1 mm | Non-Touch | LED - White | Blue Green Red | 127 mm | 5 in | HDMI | Transmissive | TFT - Color | TFP401A | |||
Newhaven Display Intl | 480 | 800 | 67.6 mm | Resistive | LED - White | Blue Green Red | 127 mm | 5 in | Parallel | Transmissive | TFT - Color | 110.08 mm | 24 Bit | WVGA | ||
Newhaven Display Intl | 480 | 800 | 65.8 mm | LED - White | Blue Green Red | 127 mm | 5 in | Parallel | Transmissive | TFT - Color | 109 mm | 24 Bit | WVGA | |||
Newhaven Display Intl | 480 | 800 | 65.8 mm | Capacitive | LED - White | Blue Green Red | 127 mm | 5 in | Parallel | Transmissive | TFT - Color | FT5310 | 109 mm | 24 Bit | WVGA | |
Newhaven Display Intl | 480 | 800 | 64.8 mm | Resistive | LED - White | Blue Green Red | 127 mm | 5 in | Parallel | Transmissive | TFT - Color | 108 mm | 24 Bit | |||
Newhaven Display Intl | 480 | 800 | 64.8 mm | LED - White | Blue Green Red | 127 mm | 5 in | Parallel | Transmissive | TFT - Color | OTD7001A | 108 mm | 24 Bit | |||
Newhaven Display Intl | 480 | 800 | 64.8 mm | Capacitive | LED - White | Blue Green Red | 127 mm | 5 in | Parallel | Transmissive | TFT - Color | OTD7001A | 108 mm | 24 Bit | ||
Newhaven Display Intl | 480 | 800 | 65.8 mm | LED - White | Blue Green Red | 127 mm | 5 in | Parallel | Transmissive | TFT - Color | 109 mm | 24 Bit | WVGA | |||
Newhaven Display Intl | 480 | 800 | 67.6 mm | Resistive | LED - White | Blue Green Red | 127 mm | 5 in | HDMI USB | Transmissive | TFT - Color | TFP401A | 110.08 mm | |||
Newhaven Display Intl | 480 | 800 | 65.8 mm | Capacitive | LED - White | Blue Green Red | 127 mm | 5 in | I2C Parallel | Transmissive | TFT - Color IPS (In-Plane Switching) | ST7262 | 109 mm | 24 Bit | WVGA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-5.0 Series
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 5" (127.00mm) 800 x 480
