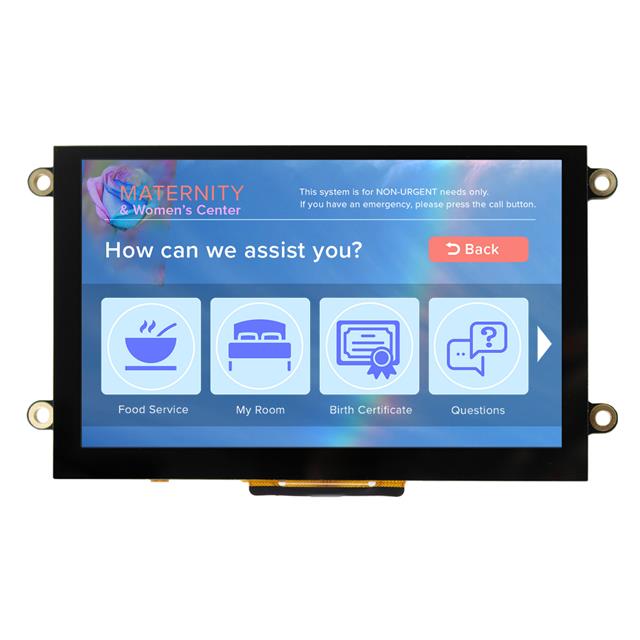

Specification	NHD-5.0-HDMI-N-RTXL-RTU

Backlight Color	White
Backlight Type	LED
Controller Type	TFP401A
Diagonal Screen Size	5 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels (Horizontal)	800 pixels
Dot Pixels (Vertical)	480 pixels
Graphics Color	Red, Green, Blue
Interface	USB, HDMI
Touchscreen	Resistive
Viewing Area Height	67.6 mm
Viewing Area Width	110.08 mm

NHD-5.0 Series

Part	Graphics Color	Touchscreen	Viewing Area Width	Viewing Area Height	Dot Pixels (Vertical)	Dot Pixels (Horizontal)	Display Mode	Interface	Display Type	Controller Type	Diagonal Screen Size	Backlight Type	Backlight Color	Interface Data Width	Dot Pixels (Resolution)
Newhaven Display Intl NHD-5.0-HDMI-N-RTXL	Blue Green Red	Non-Touch	111.1 mm	67.9 mm	480 pixels	800 pixels	Transmissive	HDMI	TFT - Color	TFP401A	5 in	LED	White
Newhaven Display Intl NHD-5.0-800480TF-ATXL#-T	Blue Green Red	Resistive	110.08 mm	67.6 mm	480 pixels	800 pixels	Transmissive	Parallel	TFT - Color		5 in	LED	White	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-800480TF-ATXI#	Blue Green Red		109 mm	65.8 mm	480 pixels	800 pixels	Transmissive	Parallel	TFT - Color		5 in	LED	White	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-800480TF-ATXL#-CTP	Blue Green Red	Capacitive	109 mm	65.8 mm	480 pixels	800 pixels	Transmissive	Parallel	TFT - Color	FT5310	5 in	LED	White	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-800480MB-ATXL-T	Blue Green Red	Resistive	108 mm	64.8 mm	480 pixels	800 pixels	Transmissive	Parallel	TFT - Color		5 in	LED	White	24 Bit
Newhaven Display Intl NHD-5.0-800480TF-ASXN	Blue Green Red		108 mm	64.8 mm	480 pixels	800 pixels	Transmissive	Parallel	TFT - Color	OTD7001A	5 in	LED	White	24 Bit
Newhaven Display Intl NHD-5.0-800480TF-ASXN-CTP	Blue Green Red	Capacitive	108 mm	64.8 mm	480 pixels	800 pixels	Transmissive	Parallel	TFT - Color	OTD7001A	5 in	LED	White	24 Bit
Newhaven Display Intl NHD-5.0-800480TF-ATXL#	Blue Green Red		109 mm	65.8 mm	480 pixels	800 pixels	Transmissive	Parallel	TFT - Color		5 in	LED	White	24 Bit	WVGA
Newhaven Display Intl NHD-5.0-HDMI-N-RTXL-RTU	Blue Green Red	Resistive	110.08 mm	67.6 mm	480 pixels	800 pixels	Transmissive	HDMI USB	TFT - Color	TFP401A	5 in	LED	White
Newhaven Display Intl NHD-5.0-800480AF-ASXP-CTP	Blue Green Red	Capacitive	109 mm	65.8 mm	480 pixels	800 pixels	Transmissive	I2C Parallel	IPS (In-Plane Switching) TFT - Color	ST7262	5 in	LED	White	24 Bit	WVGA
