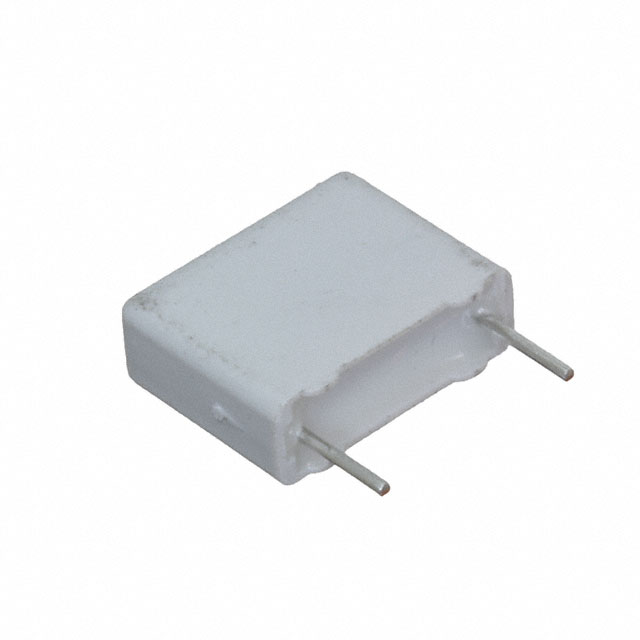

MMK10105J63A02L4BULK

Active

KEMET

CAP FILM 1UF 5% 63VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMMK10105J63A02L4BULK Spec

MMK10105J63A02L4BULK

Active

KEMET

CAP FILM 1UF 5% 63VDC RAD

Deep-Dive with AI

DocumentsMMK10105J63A02L4BULK Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMK10105J63A02L4BULK

Applications	General Purpose
Capacitance	1 µF
Dielectric Material	Polyester, Metallized
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	4.5 mm
Size / Dimension [y]	0.177 "
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 VDC

MMK10 Series

Part	Lead Spacing	Lead Spacing	Voltage Rating - DC	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Capacitance	Termination	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC
KEMET MMK10104K250A01L4BULK	0.394 in	10 mm	250 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	160 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	100000 pF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10474K100A01L4BULK	0.394 in	10 mm	100 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	63 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	0.47 µF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10223K400A01L16.5TR18	0.394 in	10 mm	400 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	200 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	0.022 µF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10104K100A01L4BULK	0.394 in	10 mm	100 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	63 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	100000 pF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10104J100A01L4BULK	0.394 in	10 mm	100 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	63 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	100000 pF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10105J63A02L4BULK	0.394 in	10 mm	63 VDC	General Purpose	4.5 mm	13 mm	0.177 "	0.512 in	40 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	1 µF	PC Pins	Through Hole	0.413 in	10.5 mm
KEMET MMK10472J1000A01L4BULK	0.394 in	10 mm	1 kVDC	General Purpose	4 mm	13 mm	0.157 in	0.512 in	250 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	4700 pF	PC Pins	Through Hole	0.354 in	9 mm	1 kV
KEMET MMK10474J63A01L4BULK	0.394 in	10 mm	63 VDC	General Purpose	4 mm	13 mm	0.157 in	0.512 in	40 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	0.47 µF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10473K250A01L4BULK	0.394 in	10 mm	250 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	160 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial		PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10102K400A01L4BULK	0.394 in	10 mm	400 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	200 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	0.001 µF	PC Pins	Through Hole	0.354 in	9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.39
		10	$ 1.04
		100	$ 0.78
		1000	$ 0.55
		5000	$ 0.49
		10000	$ 0.48

Description

General part information

MMK10 Series

1 µF Film Capacitor 40V 63V Polyester, Metallized Radial

Documents

Technical documentation and resources

MMK10105J63A02L4BULK Spec

Datasheet
