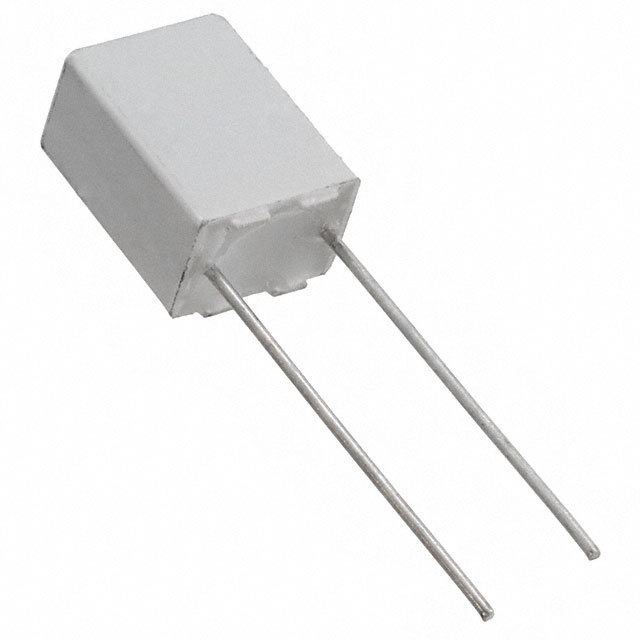

MMK10104J100A01L4BULK

Active

KEMET

CAP FILM 0.1UF 5% 100VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMMK10104J100A01L4BULK Spec

MMK10104J100A01L4BULK

Active

KEMET

CAP FILM 0.1UF 5% 100VDC RADIAL

Deep-Dive with AI

DocumentsMMK10104J100A01L4BULK Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMK10104J100A01L4BULK

Applications	General Purpose
Capacitance	100000 pF
Dielectric Material	Polyester, Metallized
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	4 mm
Size / Dimension [y]	0.157 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	63 V
Voltage Rating - DC	100 V

MMK10 Series

Part	Lead Spacing	Lead Spacing	Voltage Rating - DC	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Capacitance	Termination	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC
KEMET MMK10104K250A01L4BULK	0.394 in	10 mm	250 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	160 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	100000 pF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10474K100A01L4BULK	0.394 in	10 mm	100 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	63 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	0.47 µF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10223K400A01L16.5TR18	0.394 in	10 mm	400 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	200 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	0.022 µF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10104K100A01L4BULK	0.394 in	10 mm	100 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	63 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	100000 pF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10104J100A01L4BULK	0.394 in	10 mm	100 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	63 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	100000 pF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10105J63A02L4BULK	0.394 in	10 mm	63 VDC	General Purpose	4.5 mm	13 mm	0.177 "	0.512 in	40 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	1 µF	PC Pins	Through Hole	0.413 in	10.5 mm
KEMET MMK10472J1000A01L4BULK	0.394 in	10 mm	1 kVDC	General Purpose	4 mm	13 mm	0.157 in	0.512 in	250 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	4700 pF	PC Pins	Through Hole	0.354 in	9 mm	1 kV
KEMET MMK10474J63A01L4BULK	0.394 in	10 mm	63 VDC	General Purpose	4 mm	13 mm	0.157 in	0.512 in	40 V	Polyester Metallized	100 °C	-55 °C	5 %	Radial	0.47 µF	PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10473K250A01L4BULK	0.394 in	10 mm	250 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	160 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial		PC Pins	Through Hole	0.354 in	9 mm
KEMET MMK10102K400A01L4BULK	0.394 in	10 mm	400 V	General Purpose	4 mm	13 mm	0.157 in	0.512 in	200 V	Polyester Metallized	100 °C	-55 °C	10 %	Radial	0.001 µF	PC Pins	Through Hole	0.354 in	9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	3000	$ 0.17

Description

General part information

MMK10 Series

0.1 µF Film Capacitor 63V 100V Polyester, Metallized Radial

Documents

Technical documentation and resources

MMK10104J100A01L4BULK Spec

Datasheet
