MPSC-01-24-01-7.70-01-L-V

Active

Samtec Inc.

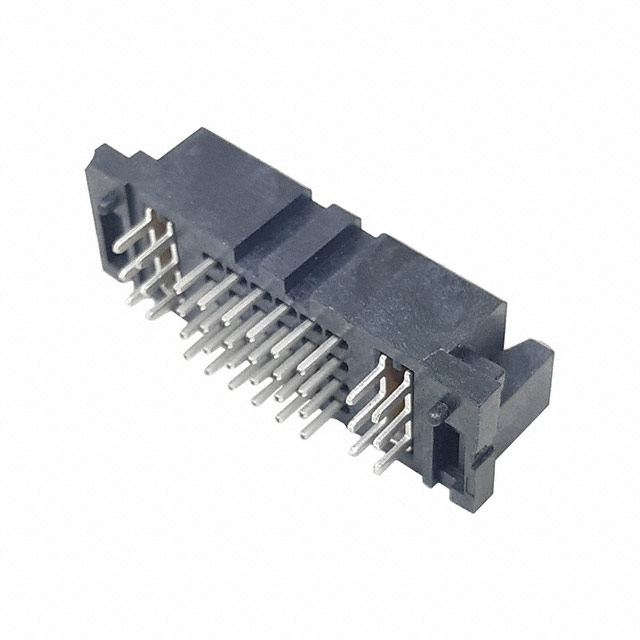

CONN RCPT 26POS GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 5.00 mm PowerStrip™/30 A Signal/Power Combo Socket Strip +2

MPSC-01-24-01-7.70-01-L-V

Active

Samtec Inc.

CONN RCPT 26POS GOLD PCB

Deep-Dive with AI

DocumentsDatasheet 5.00 mm PowerStrip™/30 A Signal/Power Combo Socket Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPSC-01-24-01-7.70-01-L-V

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.107 "
Contact Length - Post	2.71 mm
Contact Material	Copper Alloy, Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.298 in
Insulation Height	7.57 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

MPSC-01 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish - Post	Insulation Material	Insulation Color	Mounting Type	Contact Shape	Contact Material	Features	Number of Positions
Samtec Inc. MPSC-01-04-01-7.70-01-L-V	-55 °C	125 °C	Forked	0.079 in	2 mm	4	6	2	0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze
Samtec Inc. MPSC-01-16-01-7.70-01-L-V-LC	-55 °C	125 °C	Forked	0.079 in	2 mm	16		2	0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze	Board Lock Mounting Flange
Samtec Inc. MPSC-01-80-01-01-01-L-RA-SD	-55 °C	125 °C	Forked	0.079 in	2 mm				0.4 in	10.16 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole Right Angle	Square	Copper Alloy Phosphor Bronze	Mounting Flange Mounting Hardware	82 (80 + 2 Power)
Samtec Inc. MPSC-01-24-01-7.70-01-L-V	-55 °C	125 °C	Forked	0.079 in	2 mm				0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze
Samtec Inc. MPSC-01-80-01-7.70-01-L-V	-55 °C	125 °C	Forked	0.079 in	2 mm				0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze		82 (80 + 2 Power)
Samtec Inc. MPSC-01-80-01-01-01-L-RA-LC	-55 °C	125 °C	Forked	0.079 in	2 mm				0.4 in	10.16 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole Right Angle	Square	Copper Alloy Phosphor Bronze	Board Lock Mounting Flange	82 (80 + 2 Power)
