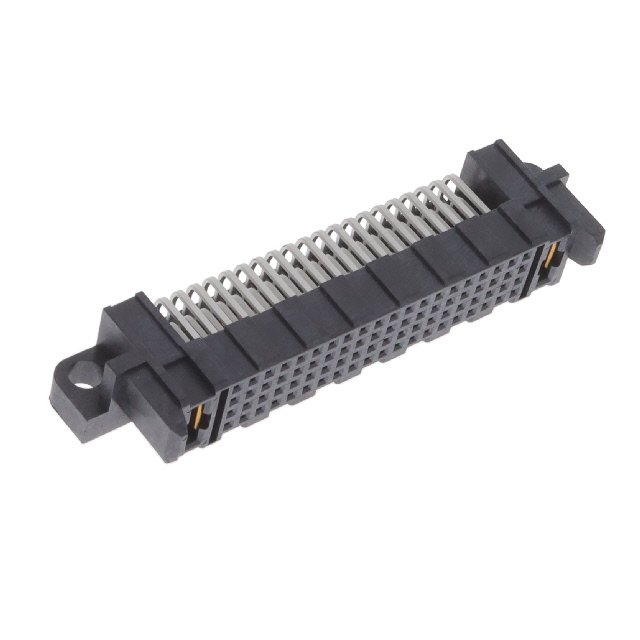

MPSC-01-80-01-01-01-L-RA-SD

Active

Samtec Inc.

5.00 MM POWERSTRIP/30 A SIGNAL/

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MPSC Datasheet +1

MPSC-01-80-01-01-01-L-RA-SD

Active

Samtec Inc.

5.00 MM POWERSTRIP/30 A SIGNAL/

Deep-Dive with AI

DocumentsDatasheet MPSC Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPSC-01-80-01-01-01-L-RA-SD

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.107 "
Contact Length - Post	2.71 mm
Contact Material	Copper Alloy, Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Features	Mounting Flange, Mounting Hardware
Insulation Color	Black
Insulation Height	0.4 in
Insulation Height	10.16 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	82 (80 + 2 Power)
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

MPSC-01 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish - Post	Insulation Material	Insulation Color	Mounting Type	Contact Shape	Contact Material	Features	Number of Positions
Samtec Inc. MPSC-01-04-01-7.70-01-L-V	-55 °C	125 °C	Forked	0.079 in	2 mm	4	6	2	0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze
Samtec Inc. MPSC-01-16-01-7.70-01-L-V-LC	-55 °C	125 °C	Forked	0.079 in	2 mm	16		2	0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze	Board Lock Mounting Flange
Samtec Inc. MPSC-01-80-01-01-01-L-RA-SD	-55 °C	125 °C	Forked	0.079 in	2 mm				0.4 in	10.16 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole Right Angle	Square	Copper Alloy Phosphor Bronze	Mounting Flange Mounting Hardware	82 (80 + 2 Power)
Samtec Inc. MPSC-01-24-01-7.70-01-L-V	-55 °C	125 °C	Forked	0.079 in	2 mm				0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze
Samtec Inc. MPSC-01-80-01-7.70-01-L-V	-55 °C	125 °C	Forked	0.079 in	2 mm				0.298 in	7.57 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole	Square	Copper Alloy Phosphor Bronze		82 (80 + 2 Power)
Samtec Inc. MPSC-01-80-01-01-01-L-RA-LC	-55 °C	125 °C	Forked	0.079 in	2 mm				0.4 in	10.16 mm	UL94 V-0	Solder	Gold	10 çin	0.25 çm	Push-Pull	All	0.107 "	2.71 mm	Receptacle	Tin	Liquid Crystal Polymer (LCP)	Black	Through Hole Right Angle	Square	Copper Alloy Phosphor Bronze	Board Lock Mounting Flange	82 (80 + 2 Power)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.13
		10	$ 12.13
		25	$ 11.56
Newark	Each	1	$ 15.51
		10	$ 14.06
		100	$ 11.72
		250	$ 10.34
		500	$ 10.07
		1000	$ 9.38
