MPSC-01 Series

Catalog

CONN RCPT 6POS GOLD PCB

Part	Contact Finish Thickness - Mating	Style	Fastening Type	Connector Type	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Contact Finish - Mating	Mounting Type	Row Spacing - Mating	Contact Finish - Post	Number of Rows	Contact Length - Post	Termination	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Color	Contact Type	Insulation Material	Contact Material	Contact Shape	Features
Samtec Inc. MPSC-01-04-01-7.70-01-L-V	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.298 in	Gold	Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	6	4	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square
Samtec Inc. MPSC-01-16-01-7.70-01-L-V	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.298 in	Gold	Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	18	16	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square
Samtec Inc. MPSC-01-16-01-7.70-01-L-V-LC	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.298 in	Gold	Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	18	16	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square	Board Lock Mounting Flange
Samtec Inc. MPSC-01-80-01-01-01-L-RA-SD	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.4 in	Gold	Right Angle Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	82	80	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square	Mounting Flange Mounting Hardware
Samtec Inc. MPSC-01-24-01-7.70-01-L-V	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.298 in	Gold	Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	26	24	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square

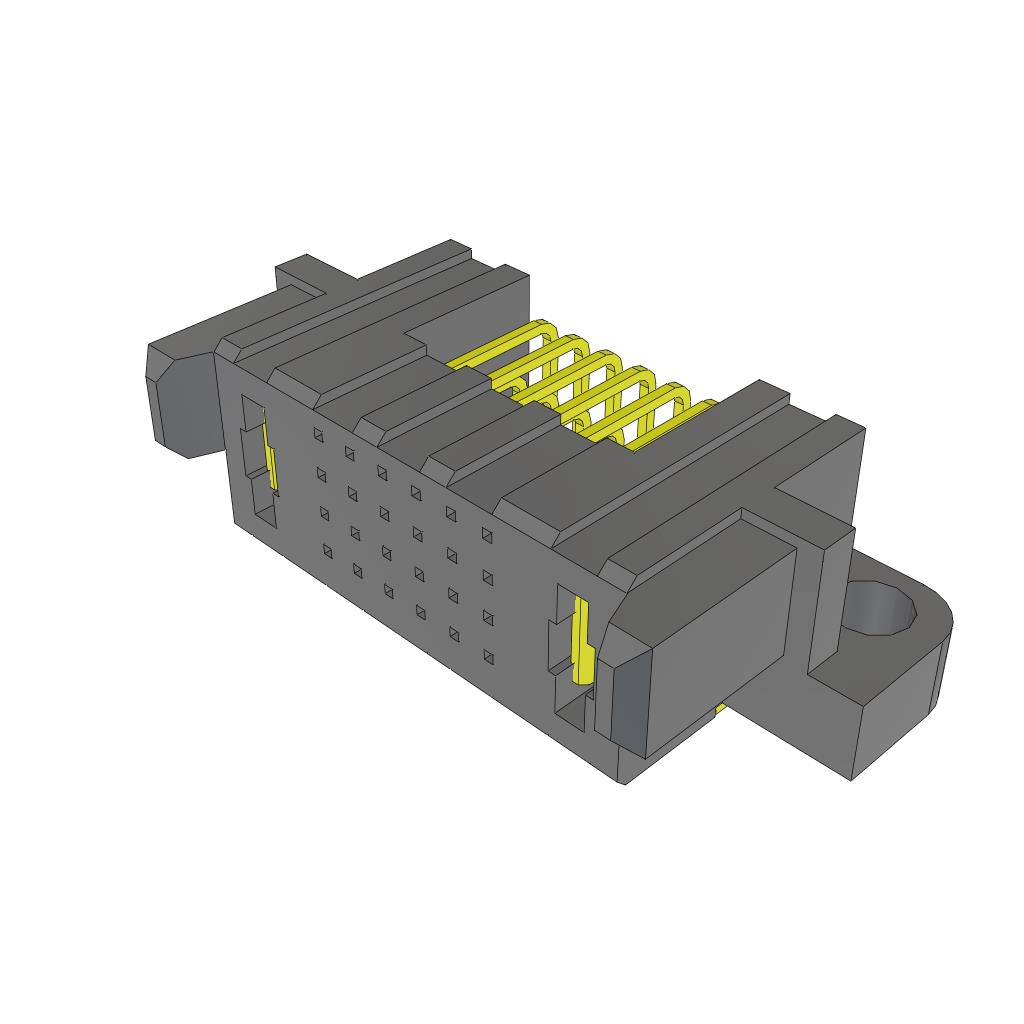

Samtec Inc. MPSC-01-24-01-01-01-L-RA-SD	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.4 in	Gold	Right Angle Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	26	24	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square	Mounting Flange Mounting Hardware
Samtec Inc. MPSC-01-80-01-7.70-01-L-V	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.298 in	Gold	Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	82	80	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square
Samtec Inc. MPSC-01-80-01-01-01-L-RA-LC	10 µin	Board	Push-Pull	Receptacle	UL94 V-0	All	0.4 in	Gold	Right Angle Through Hole	0.079 in	Tin	4	0.107 in	Solder	2	82	80	125 °C	-55 °C	Black	Forked	Liquid Crystal Polymer (LCP)	Copper Alloy Phosphor Bronze	Square	Board Lock Mounting Flange
