1747050-5

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 2POS 7.80MM

Deep-Dive with AI

Search across all available documentation for this part.

1747050-5

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 2POS 7.80MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1747050-5

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.307 in
Pitch [x]	7.8 mm

GRACE INERTIA 7.92 Series

Part	Number of Rows	Fastening Type	Number of Positions Loaded	Number of Positions	Style	Insulation Color	Applications	Connector Type	Contact Shape	Insulation Material	Material Flammability Rating	Voltage Rating	Contact Type	Features	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shrouding	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Termination	Contact Termination	Note	Color	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 1747052-4	1	Latch Holder	All	2	Board to Cable/Wire	Yellow	General Purpose Industrial	Header	Rectangular	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	300 VAC	Tab	Board Guide	14.5 mm	0.571 in	-30 ░C	105 ░C	Varies by Wire Gauge	Shrouded - 4 Wall	Through Hole	0.312 in	7.92 mm	Copper Alloy	Tin	Press-Fit Solder
TE Connectivity Raychem Cable Protection 2-1747052-5	1	Latch Holder	All	2	Board to Cable/Wire	Green	General Purpose Industrial	Header	Rectangular	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	300 VAC	Tab	Board Guide	14.5 mm	0.571 in	-30 ░C	105 ░C	Varies by Wire Gauge	Shrouded - 4 Wall	Through Hole	0.312 in	7.92 mm	Copper Alloy	Tin	Press-Fit Solder
TE Connectivity Raychem Cable Protection 1-1747050-2	1	Latch Lock		2				Plug		Polyamide (PA66) Nylon 6/6 Glass Filled			Tab				-40 °C	105 ░C			Free Hanging (In-Line)						Crimp	Contacts Not Included	Red	0.307 in	7.8 mm
TE Connectivity Raychem Cable Protection 1-1747052-5	1	Latch Holder	All	2	Board to Cable/Wire	Green	General Purpose Industrial	Header	Rectangular	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	300 VAC	Tab	Board Guide	14.5 mm	0.571 in	-30 ░C	105 ░C	Varies by Wire Gauge	Shrouded - 4 Wall	Through Hole	0.312 in	7.92 mm	Copper Alloy	Tin	Press-Fit Solder
TE Connectivity Raychem Cable Protection 1-1747052-1	1	Latch Holder	All	2	Board to Cable/Wire	Natural	General Purpose Industrial	Header	Rectangular	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	300 VAC	Tab	Board Guide	14.5 mm	0.571 in	-30 ░C	105 ░C	Varies by Wire Gauge	Shrouded - 4 Wall	Through Hole	0.312 in	7.92 mm	Copper Alloy	Tin	Press-Fit Solder
TE Connectivity Raychem Cable Protection 1747052-2	1	Latch Holder	All	2	Board to Cable/Wire	Red	General Purpose Industrial	Header	Rectangular	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	300 VAC	Tab	Board Guide	14.5 mm	0.571 in	-30 ░C	105 ░C	Varies by Wire Gauge	Shrouded - 4 Wall	Through Hole	0.312 in	7.92 mm	Copper Alloy	Tin	Press-Fit Solder
TE Connectivity Raychem Cable Protection 1747050-5	1	Latch Lock		2				Plug		Polyamide (PA66) Nylon 6/6 Glass Filled			Tab				-40 °C	105 ░C			Free Hanging (In-Line)						Crimp	Contacts Not Included	Green	0.307 in	7.8 mm
TE Connectivity Raychem Cable Protection 1747050-1	1	Latch Lock		2				Plug		Polyamide (PA66) Nylon 6/6 Glass Filled			Tab				-40 °C	105 ░C			Free Hanging (In-Line)						Crimp	Contacts Not Included	Natural	0.307 in	7.8 mm
TE Connectivity Raychem Cable Protection 2-1747050-2	1	Latch Lock		2				Plug		Polyamide (PA66) Nylon 6/6 Glass Filled			Tab				-40 °C	105 ░C			Free Hanging (In-Line)						Crimp	Contacts Not Included	Red	0.307 in	7.8 mm
TE Connectivity Raychem Cable Protection 1-1747050-4	1	Latch Lock		2				Plug		Polyamide (PA66) Nylon 6/6 Glass Filled			Tab				-40 °C	105 ░C			Free Hanging (In-Line)						Crimp	Contacts Not Included	Yellow	0.307 in	7.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 0.21

Description

General part information

GRACE INERTIA 7.92 Series

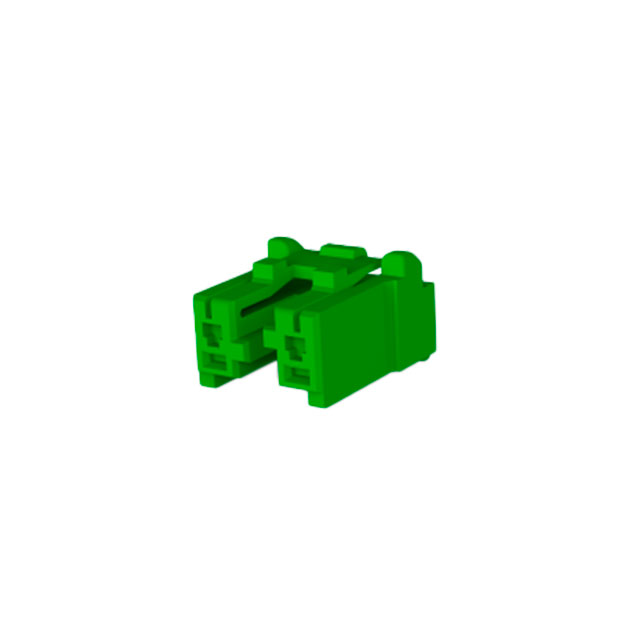

2 Rectangular Connectors - Housings Plug Green 0.307" (7.80mm)

Documents

Technical documentation and resources

No documents available
