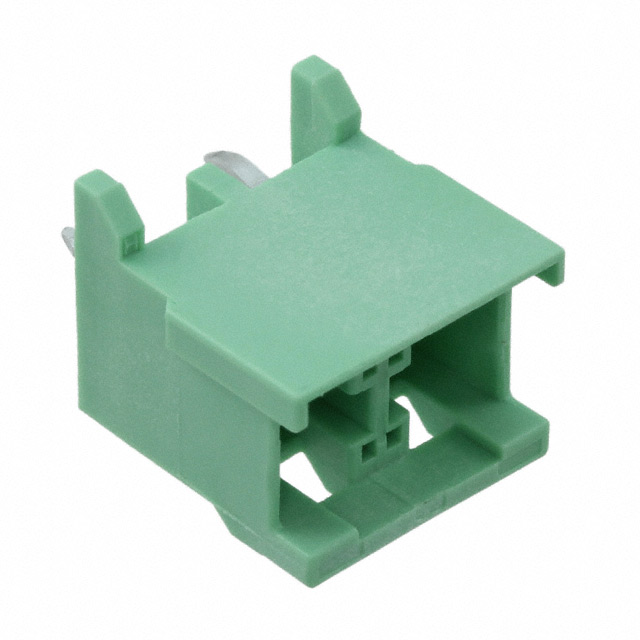

1-1747052-5
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 2POS 7.92MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1747052-5
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 2POS 7.92MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1747052-5 |
|---|---|
| Applications | General Purpose, Industrial |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Green |
| Insulation Height | 14.5 mm |
| Insulation Height | 0.571 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch - Mating | 0.312 in |
| Pitch - Mating | 7.92 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.90 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.50 | |||
| 10000 | $ 0.49 | |||
Description
General part information
GRACE INERTIA 7.92 Series
Connector Header Through Hole 2 position 0.312" (7.92mm)
