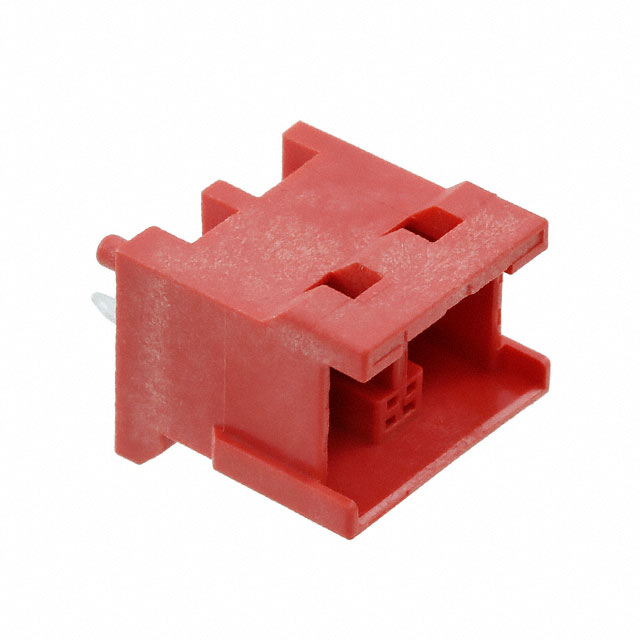

1747052-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 2POS 7.92MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1747052-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 2POS 7.92MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1747052-2 |
|---|---|
| Applications | General Purpose, Industrial |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Red |
| Insulation Height | 14.5 mm |
| Insulation Height | 0.571 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch - Mating | 0.312 in |
| Pitch - Mating | 7.92 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 300 VAC |
GRACE INERTIA 7.92 Series
| Part | Number of Rows | Fastening Type | Number of Positions Loaded | Number of Positions | Style | Insulation Color | Applications | Connector Type | Contact Shape | Insulation Material | Material Flammability Rating | Voltage Rating | Contact Type | Features | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shrouding | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material | Contact Finish - Post | Termination | Contact Termination | Note | Color | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 1 | Latch Holder | All | 2 | Board to Cable/Wire | Yellow | General Purpose Industrial | Header | Rectangular | Polyamide (PA66) Nylon 6/6 Glass Filled | UL94 V-0 | 300 VAC | Tab | Board Guide | 14.5 mm | 0.571 in | -30 ░C | 105 ░C | Varies by Wire Gauge | Shrouded - 4 Wall | Through Hole | 0.312 in | 7.92 mm | Copper Alloy | Tin | Press-Fit Solder | |||||
TE Connectivity Raychem Cable Protection | 1 | Latch Holder | All | 2 | Board to Cable/Wire | Green | General Purpose Industrial | Header | Rectangular | Polyamide (PA66) Nylon 6/6 Glass Filled | UL94 V-0 | 300 VAC | Tab | Board Guide | 14.5 mm | 0.571 in | -30 ░C | 105 ░C | Varies by Wire Gauge | Shrouded - 4 Wall | Through Hole | 0.312 in | 7.92 mm | Copper Alloy | Tin | Press-Fit Solder | |||||
TE Connectivity Raychem Cable Protection | 1 | Latch Lock | 2 | Plug | Polyamide (PA66) Nylon 6/6 Glass Filled | Tab | -40 °C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included | Red | 0.307 in | 7.8 mm | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Latch Holder | All | 2 | Board to Cable/Wire | Green | General Purpose Industrial | Header | Rectangular | Polyamide (PA66) Nylon 6/6 Glass Filled | UL94 V-0 | 300 VAC | Tab | Board Guide | 14.5 mm | 0.571 in | -30 ░C | 105 ░C | Varies by Wire Gauge | Shrouded - 4 Wall | Through Hole | 0.312 in | 7.92 mm | Copper Alloy | Tin | Press-Fit Solder | |||||
TE Connectivity Raychem Cable Protection | 1 | Latch Holder | All | 2 | Board to Cable/Wire | Natural | General Purpose Industrial | Header | Rectangular | Polyamide (PA66) Nylon 6/6 Glass Filled | UL94 V-0 | 300 VAC | Tab | Board Guide | 14.5 mm | 0.571 in | -30 ░C | 105 ░C | Varies by Wire Gauge | Shrouded - 4 Wall | Through Hole | 0.312 in | 7.92 mm | Copper Alloy | Tin | Press-Fit Solder | |||||
TE Connectivity Raychem Cable Protection | 1 | Latch Holder | All | 2 | Board to Cable/Wire | Red | General Purpose Industrial | Header | Rectangular | Polyamide (PA66) Nylon 6/6 Glass Filled | UL94 V-0 | 300 VAC | Tab | Board Guide | 14.5 mm | 0.571 in | -30 ░C | 105 ░C | Varies by Wire Gauge | Shrouded - 4 Wall | Through Hole | 0.312 in | 7.92 mm | Copper Alloy | Tin | Press-Fit Solder | |||||
TE Connectivity Raychem Cable Protection | 1 | Latch Lock | 2 | Plug | Polyamide (PA66) Nylon 6/6 Glass Filled | Tab | -40 °C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included | Green | 0.307 in | 7.8 mm | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Latch Lock | 2 | Plug | Polyamide (PA66) Nylon 6/6 Glass Filled | Tab | -40 °C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included | Natural | 0.307 in | 7.8 mm | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Latch Lock | 2 | Plug | Polyamide (PA66) Nylon 6/6 Glass Filled | Tab | -40 °C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included | Red | 0.307 in | 7.8 mm | |||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Latch Lock | 2 | Plug | Polyamide (PA66) Nylon 6/6 Glass Filled | Tab | -40 °C | 105 ░C | Free Hanging (In-Line) | Crimp | Contacts Not Included | Yellow | 0.307 in | 7.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.54 | |
Description
General part information
GRACE INERTIA 7.92 Series
Connector Header Through Hole 2 position 0.312" (7.92mm)
