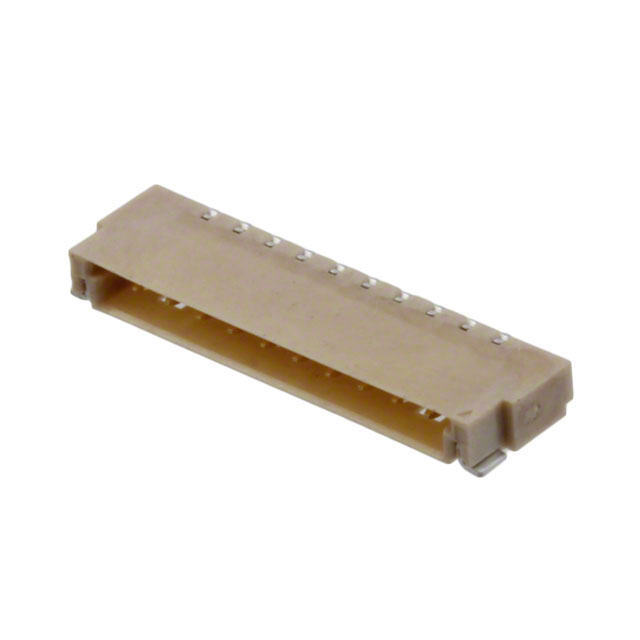

FI-S10P-HFE

Active

JAE Electronics

CONN HEADER SMD R/A 10POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD R/A 10POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S10P-HFE

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	1.8 mm
Insulation Height	0.071 "
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Features	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Contact Material	Contact Type	Termination	Connector Type	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Shrouding	Mounting Type	Insulation Height	Insulation Height	Insulation Material	Color	Contact Termination	Pitch [x]	Pitch [x]	Note
JAE Electronics FI-S10P-HFE-E1500	Solder Retention	Tin or Tin-Alloy	1 A	Gold	Beige	Copper Alloy	Male Pin	Solder	Receptacle	10	Square	-40 °C	80 C	Friction Lock	1	UL94 V-0	200 V	All	Board to Cable/Wire	1.25 mm	0.049 in	Shrouded - 4 Wall	Surface Mount Right Angle	1.8 mm	0.071 "
JAE Electronics FI-S10P-HFE	Solder Retention	Tin or Tin-Alloy	1 A	Gold	Beige	Copper Alloy	Male Pin	Solder	Receptacle	10	Circular	-40 °C	80 C	Friction Lock	1	UL94 V-0	200 V	All	Board to Cable/Wire	1.25 mm	0.049 in	Shrouded - 4 Wall	Surface Mount Right Angle	1.8 mm	0.071 "
JAE Electronics FI-S10S							Female Socket		Plug	10				Friction Lock	1								Free Hanging (In-Line)			Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Crimp	0.049 in	1.25 mm	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 10 position 0.049" (1.25mm)
