FI-S10S

Active

JAE Electronics

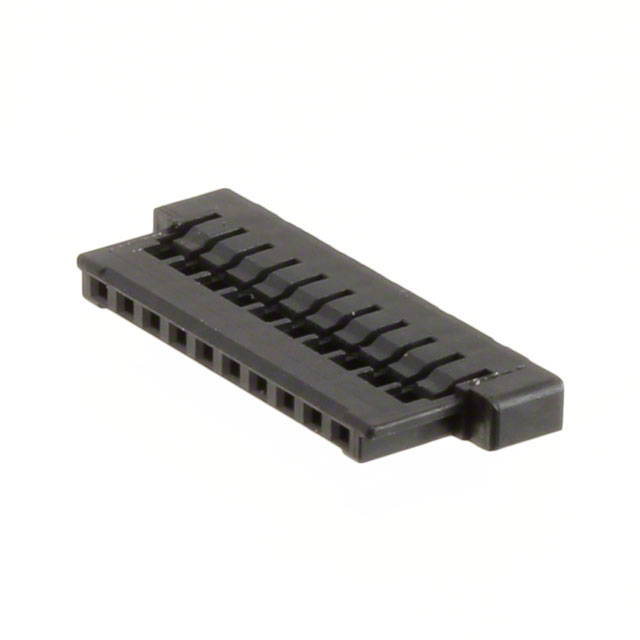

CONN PLUG HSG 10POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 10POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S10S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	1
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Features	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Contact Material	Contact Type	Termination	Connector Type	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Shrouding	Mounting Type	Insulation Height	Insulation Height	Insulation Material	Color	Contact Termination	Pitch [x]	Pitch [x]	Note
JAE Electronics FI-S10P-HFE-E1500	Solder Retention	Tin or Tin-Alloy	1 A	Gold	Beige	Copper Alloy	Male Pin	Solder	Receptacle	10	Square	-40 °C	80 C	Friction Lock	1	UL94 V-0	200 V	All	Board to Cable/Wire	1.25 mm	0.049 in	Shrouded - 4 Wall	Surface Mount Right Angle	1.8 mm	0.071 "
JAE Electronics FI-S10P-HFE	Solder Retention	Tin or Tin-Alloy	1 A	Gold	Beige	Copper Alloy	Male Pin	Solder	Receptacle	10	Circular	-40 °C	80 C	Friction Lock	1	UL94 V-0	200 V	All	Board to Cable/Wire	1.25 mm	0.049 in	Shrouded - 4 Wall	Surface Mount Right Angle	1.8 mm	0.071 "
JAE Electronics FI-S10S							Female Socket		Plug	10				Friction Lock	1								Free Hanging (In-Line)			Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Crimp	0.049 in	1.25 mm	Contacts Not Included
