FI-S10P-HFE-E1500
ActiveJAE Electronics

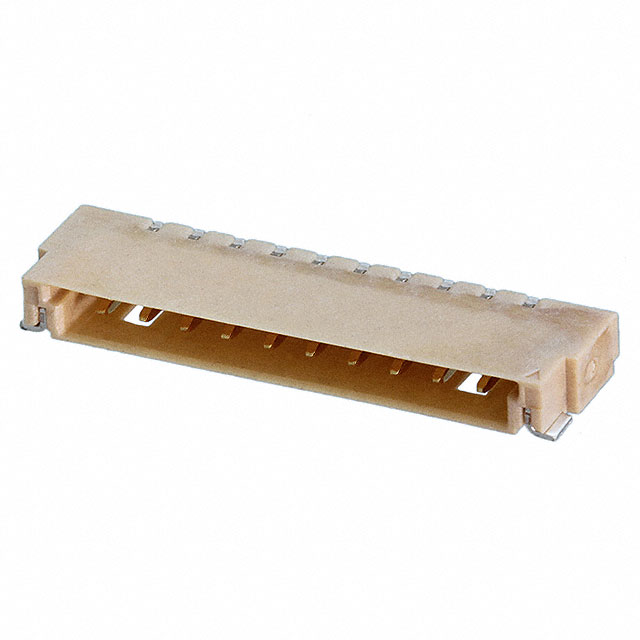

BOARD CONNECTOR, 10 CONTACT(S), SURFACE MOUNT TERMINAL, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
FI-S10P-HFE-E1500
ActiveJAE Electronics
BOARD CONNECTOR, 10 CONTACT(S), SURFACE MOUNT TERMINAL, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FI-S10P-HFE-E1500 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin or Tin-Alloy |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Friction Lock |
| Features | Solder Retention |
| Insulation Color | Beige |
| Insulation Height | 1.8 mm |
| Insulation Height | 0.071 " |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.65 | |
| 10 | $ 2.40 | |||
| 100 | $ 2.12 | |||
| 500 | $ 1.80 | |||
| Digi-Reel® | 1 | $ 2.65 | ||
| 10 | $ 2.40 | |||
| 100 | $ 2.12 | |||
| 500 | $ 1.80 | |||
| Tape & Reel (TR) | 1500 | $ 1.48 | ||
| 3000 | $ 1.43 | |||
Description
General part information
FI-S10 Series
Connector Header Surface Mount, Right Angle 10 position 0.049" (1.25mm)
