84136012A
ActiveTexas Instruments
OCTAL D-TYPE FLIP-FLOPS WITH CLEAR
Deep-Dive with AI
Search across all available documentation for this part.
84136012A
ActiveTexas Instruments
OCTAL D-TYPE FLIP-FLOPS WITH CLEAR
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 84136012A | SN54ALS273 Series |
|---|---|---|
| Clock Frequency | 30 MHz | 30 MHz |
| Current - Output High, Low | 12 mA | 12 mA |
| Current - Quiescent (Iq) | 29 mA | 29 mA |
| Max Propagation Delay @ V, Max CL | 20 ns | 20 ns |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 8 | 8 |
| Number of Elements [custom] | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 C | -55 C |
| Output Type | Non-Inverted | Non-Inverted |

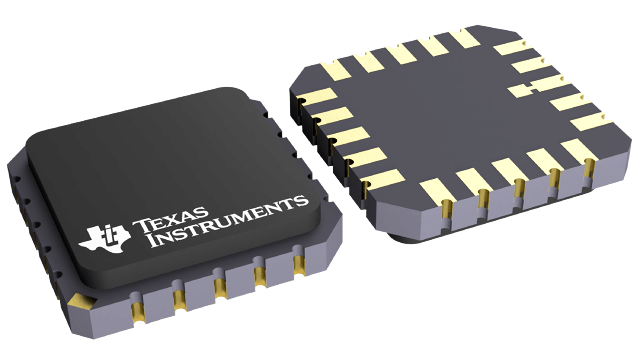

| Package / Case | 20-CLCC | 20-CFlatPack, 20-CLCC |
| Supplier Device Package | 20-LCCC | 20-CFP, 20-LCCC |
| Supplier Device Package [x] | 8.89 | 8.89 |
| Supplier Device Package [y] | 8.89 | 8.89 |
| Trigger Type | Positive Edge | Positive Edge |
| Type | D-Type | D-Type |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
SN54ALS273 Series
Octal D-type Flip-Flops With Clear
| Part | Number of Elements [custom] | Current - Output High, Low | Number of Bits per Element | Voltage - Supply [Max] | Voltage - Supply [Min] | Trigger Type | Type | Output Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Clock Frequency | Max Propagation Delay @ V, Max CL | Current - Quiescent (Iq) | Mounting Type | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments 8413601SAThese octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear () input.
Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.
The SN54ALS273 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C.
These octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear () input.
Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.
The SN54ALS273 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C. | 1 | 12 mA | 8 | 5.5 V | 4.5 V | Positive Edge | D-Type | Non-Inverted | 20-CFlatPack | -55 C | 125 °C | 30 MHz | 20 ns | 29 mA | Surface Mount | 20-CFP | ||
Texas Instruments 84136012AThese octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear () input.
Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.
The SN54ALS273 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C.
These octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear () input.
Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.
The SN54ALS273 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C. | 1 | 12 mA | 8 | 5.5 V | 4.5 V | Positive Edge | D-Type | Non-Inverted | 20-CLCC | -55 C | 125 °C | 30 MHz | 20 ns | 29 mA | Surface Mount | 20-LCCC | 8.89 | 8.89 |
Description
General part information
SN54ALS273 Series
These octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear () input.
Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output.
The SN54ALS273 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS273 is characterized for operation from 0°C to 70°C.
